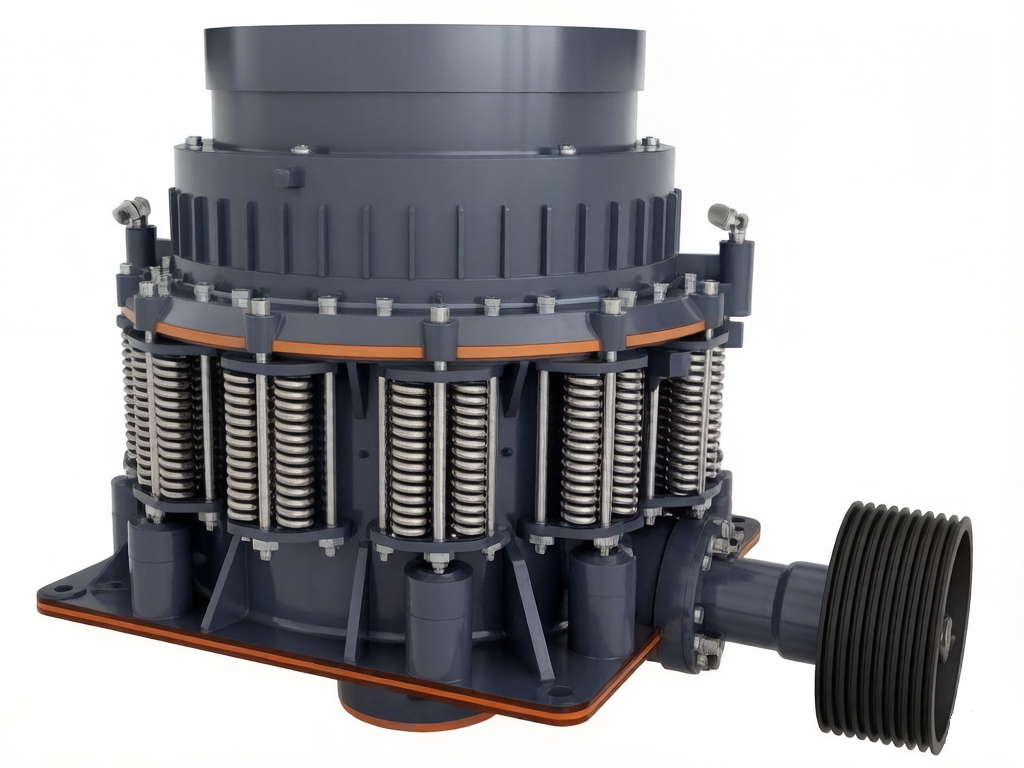

Simmons Cone Crusher

Product Introduction

The CS Series high-efficiency spring cone crusher is a modern high-performance crusher developed by our company based on imported and absorbed foreign technology, customer requirements, lamination crushing principle, and the concept of more crushing and less grinding. It integrates high swing frequency, optimized cavity type, and reasonable stroke. It can be widely used in metal and non-metal ores, cement plants, construction, sand and gravel, metallurgy and other industries. Materials that can be crushed include iron ore, granite, quartz rock, sandstone, cobblestones, etc.

Working Principle

The CS Series high-efficiency spring cone crusher mainly consists of transmission housing, mainframe, eccentric bushing, bowl-shaped bearing pad, dynamic cone, support sleeve and adjusting ring assembly, and feeding device. Its auxiliary parts include electrical system, thin oil lubrication system, and hydraulic cavity cleaning system. During operation, the motor drives the eccentric bushing to rotate through V-belts, large belt wheel, drive shaft, small bevel gear, and large bevel gear. The dynamic cone axis performs pendulum motion under the drive of the eccentric bushing, causing the crushing wall surface to approach and leave the bowl-shaped bearing surface alternately. This causes materials in the annular crushing cavity formed by the fixed cone and dynamic cone to be continuously subjected to impact, compression, and bending for crushing. After multiple compressions, impacts, and bending, materials are crushed to the required size and discharged from the bottom.

Product Advantages

High Performance: Through optimized cavity design and combination of reasonable speed and stroke, this model does the most work at the same dynamic cone diameter, resulting in higher performance and production capacity.
Excellent Particle Size Distribution: Using the lamination crushing principle, the proportion of cubic particles in the product is significantly improved, with reduced needle-like particles and more uniform gradation.
Excellent Stability: When non-crushable objects like iron blocks enter the machine, the overload protection device automatically releases them and then resets.
Easy Cavity Cleaning: If the crusher stops under load, the hydraulic cavity cleaning system can quickly clear the crushing cavity, greatly reducing downtime.
High Reliability: The large-diameter main shaft, heavy-duty mainframe, and independent automatic control lubrication system ensure the equipment is sturdy, durable, and reliable in operation.
Easy Maintenance and Operation: All components can be disassembled from the top or side, so that the fixed cone and dynamic cone assemblies can be easily removed.
Low Production Cost: Due to high production capacity, reliability, and easy maintenance, production costs are greatly reduced.

Standard Type CS Series High-Efficiency Spring Cone Crusher Parameters

Model	Moving Cone Diameter(mm/inch)	Cavity Type	Feed Opening(mm)	Discharge Opening Range(mm)	Capacity(t/h)	Power(kW)	Dimensions(mm)
CSB75	900（3'）	Fine	83	9-22	45-91	75	2821x1880x2164
		Medium	95	10-25	50-125
		Coarse	159	13-38	59-163
CSB160	1295(4¼')	Fine	109	13-31	109-181	185	2800x2342x2846
		Medium	188	16-31	132-253
		Coarse	216	19-51	172-349
CSB240	1650(5½')	Fine	188	16-38	181-327	240	3911x2870x3771
		Medium	213	22-51	258-417
		Coarse	241	25-64	299-635
CSB400	2134(7')	Fine	253	19-38	381-726	400	5200x4300x4700
		Medium	303	25-51	608-998
		Coarse	334	31-64	870-1400

Short Head Type CS Series High-Efficiency Spring Cone Crusher Parameters

Model	Moving Cone Diameter(mm/inch)	Cavity Type	Feed Opening(mm)	Discharge Opening Range(mm)	Capacity(t/h)	Power(kW)	Dimensions(mm)
CSD75	900（3'）	Fine	13	4-13	27-90	75	2821x1880x2410
		Medium	33	6-16	27-100
		Coarse	51	6-19	65-140
CSD160	1295(4¼')	Fine	29	6-16	36-163	160	2800x2342x2668
		Medium	54	8-16	68-163
		Coarse	70	10-25	109-227
CSD240	1650(5½')	Fine	35	7-13	90-209	240	3917x2870x3771
		Medium	54	8-19	136-281
		Coarse	98	13-25	190-336
CSD400	2134(7')	Fine	51	5-16	190-408	400	5200x4300x4700
		Medium	95	10-19	354-508
		Coarse	127	13-25	454-599

Product images, models, data, functions, performance, and specifications on this website are for reference only and may be improved. For specific information, please refer to the actual product and product manual. Unless otherwise specified, the data interpretation rights on this website are reserved by OrePeak.

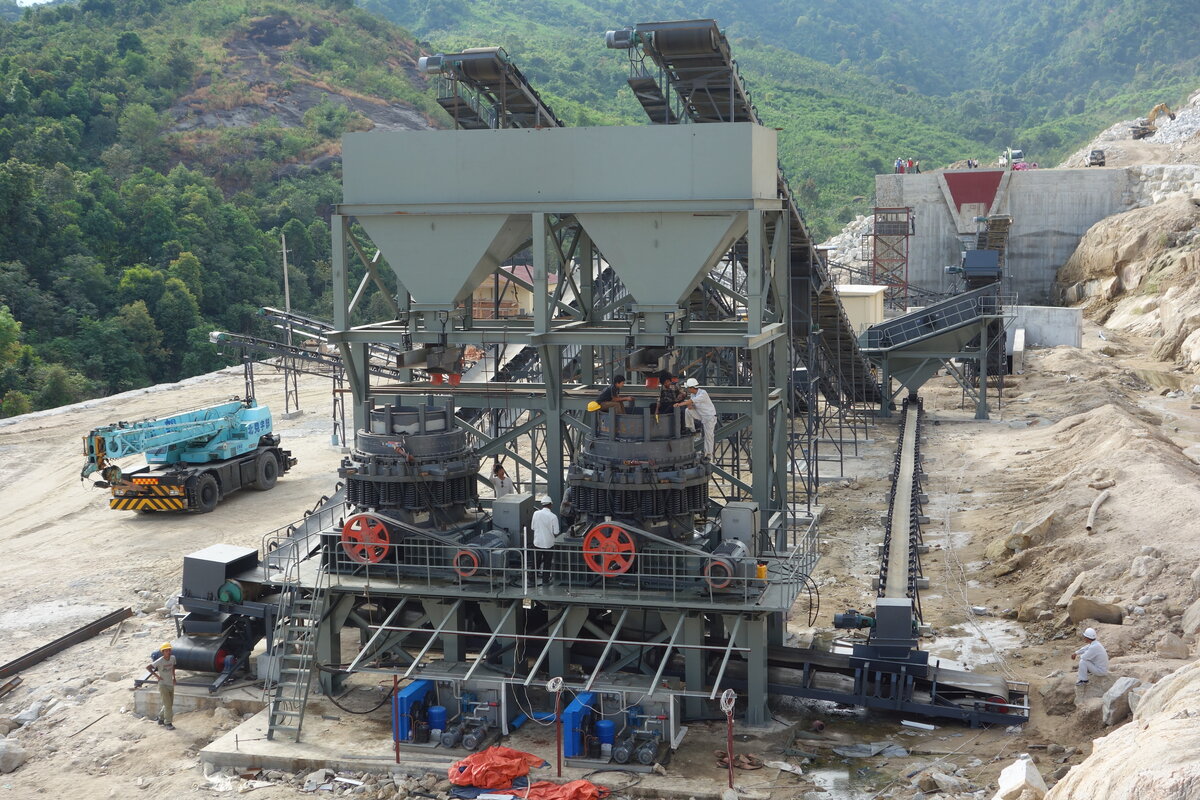

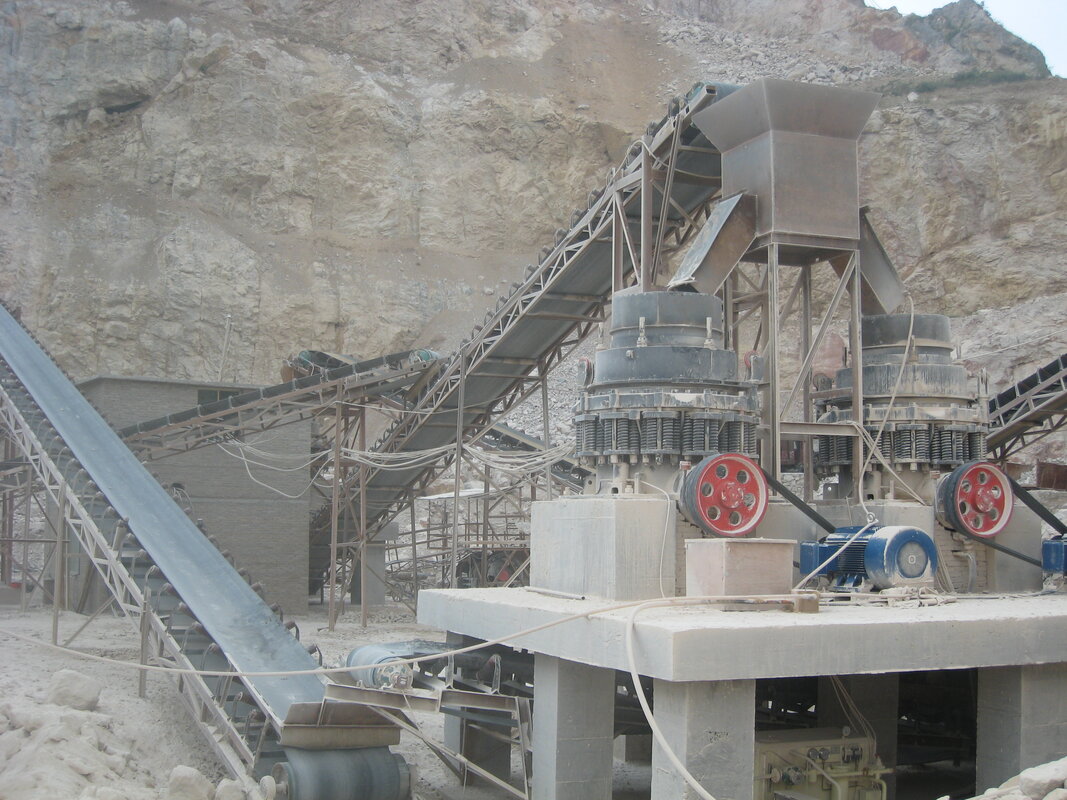

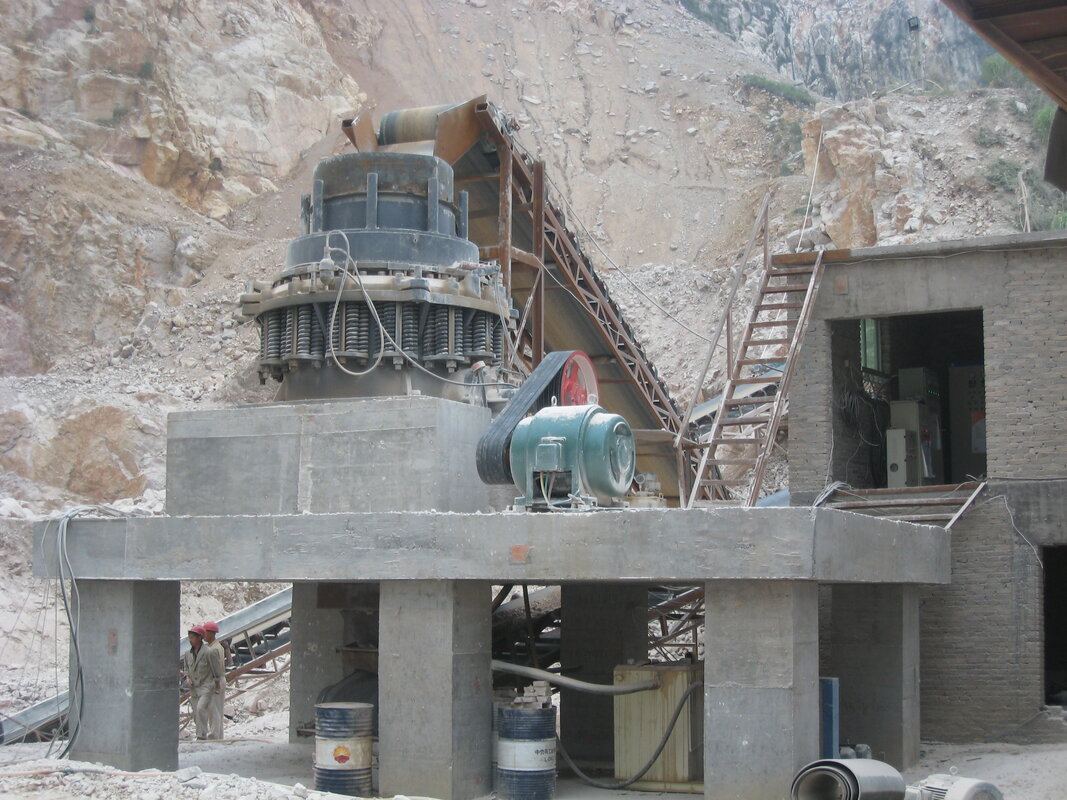

Application Cases
