Product Introduction

vibrationFeederalso known asvibrating feed machine，in production processes to continuously and uniformly feed lump,granular and powdered materials from storage hoppers or funnels to receiving equipment.In crushing production lines, this product can provide continuous and uniform feeding for crushing equipment and perform preliminary screening of materials.

Working Principle

vibrationFeederadopts vibration motor as excitation source to drive equipment vibration，forcing materials to slowly move from the feed end to the discharge end。At the same time, materials are screened to make their particle size more uniform。Feederinstalled on a bracket，equipped with rubber springs，to bearFeedervibration。 Feeding refers to conveying materials according to demand，by changingvibrationmotor's excitation forceFeederfeeder capacity can be adjusted。can be performed using theFeederscreening layer installed at the bottom of the feeder。

The product includes the followingSeries：ZSWSeries、SPSeriesvibrationFeeder、GFSeriesvibrationFeeder、F5XSeriesvibrationFeeder

Product Advantages

Complete series to meet different needs:SP, GF, ZSW, F5X four major series, covering various capacity requirements from small to large.

Simple structure, safe and reliable:Simple design, sturdy structure, stable and reliable operation.

Advanced design, outstanding performance:Advanced design concept, powerful processing capacity, high conveying efficiency.

Simple operation, easy maintenance:Convenient operation, simple daily maintenance, low repair cost.

Series	Model	Trough Size	Max Feed Size(mm)	Processing Capacity(t/h)	Vibration Frequency(r/min)	Double Amplitude(mm)	Installation Angle(°)	Power	Overall Dimensions
SP	SP0816	800X1600	265	180-220	1470	3-4	0(0-10)	0.75×2	1789×1284×1544
	SP0816Z	800X1600	265	180-220	1470	3-4	0(0-10)	0.75×2	1789X1327X918
	SP1220	1200X2000	400	400-500	1470	3-4	0(0-10)	1.2X2	2217X1597X1548
	SP1220Z	1200X2000	400	400-500	1470	3-4	0(0-10)	1.2×2	2217X1731X970
	SP1623Z	1600X2250	500	700-850	970	3-5	8(0-10)	2×2	2467X2151X1211
GF	GF0942(M)	900×4200	500	280	1000	5-8	0	2.9X2	4200×1520×1481
	GF0942S	900×4200	500	280	1000	5-8	0	2.9X2	4200×1520×1481
	GF1245(M)	1200×4500	700	450	1000	5-8	0	6×2	4500×1840×1555
	GF1245S	1200×4500	700	450	1000	5-8	0	6×2	4500×1840×1555
ZSW	ZSW180×80	1800×800	300	30-80	970	6-8	5(0-7)	1.1×2	2200×1100×800
	ZSW200×120	2000×1200	300	80-500	970	6-8	5(0-7)	1.7×2	2000×1200×855
	ZSW300×90	3000×900	300	40-100	970	6-8	5(0-7)	1.7×2	3050×1430×1550
	ZSW380×96	3800×960	500	90-200	710	7-9	5(0-7)	11	3880×2240×1880
	ZSW420×110	4200×1100	580	150-350	710	8-9	5(0-7)	15	4300×2450×2010
	ZSW490×110	4900×1100	580	180-380	780	8-9	5(0-7)	15	4980×2450×2010
	ZSW490×130	4900×1300	750	250-450	780	8-9	5(0-7)	22	4980×2710×2050
	ZSW600×150	6000×1500	800	600-1000	780	8-9	5(0-7)	30	6160×2919×2293
F5X	F5X1045(M)	1000×4500	700	400	1000(500-1000)	8.5	5(0-10)	15	4475×1660×1485
	F5X1345(M)	1300×4500	900	600	1000(500-1000)	8.5	5(0-10)	22	4475×1960×1485
	F5X1360(S)	1300×6000	900	600	1000(500-1000)	8.5	5(0-10)	30	6195×1960×1680
	F5X1645(M)	1600×4500	1200	1000	1000(500-1000)	8.5	5(0-10)	22	4475×2260×1485
	F5X1660(S)	1600×6000	1200	1000	1000(500-1000)	8.5	5(0-10)	30	6195×2260×1680
	F5X2060	2000×6000	1500	2400	1000(500-1000)	8.5	5(0-15)	45	6195×2660×1680
	F5X1354G	1300×5000	900	500	1000(500-1000)	8	5(0-10)	22	4998×2601×2571
	F5X1654G	1600×5000	1200	800	1000(500-1000)	8	5(0-10)	30	4998×2931×2571
	F5X2054G	2000×5000	1500	1200	1000(500-1000)	8	5(0-10)	45	4998×3481×2625

Product images, models, data, functions, performance, and specifications on this website are for reference only and may be improved. For specific information, please refer to the actual product and product manual. Unless otherwise specified, the data interpretation rights on this website are reserved by OrePeak.

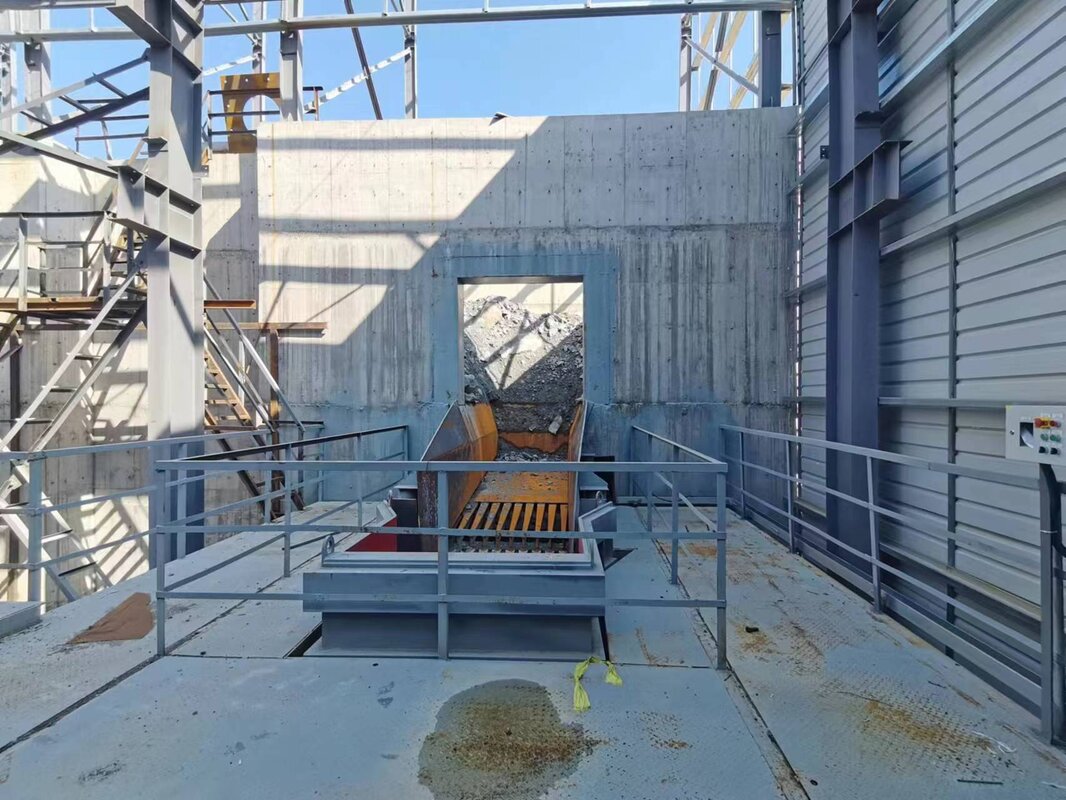

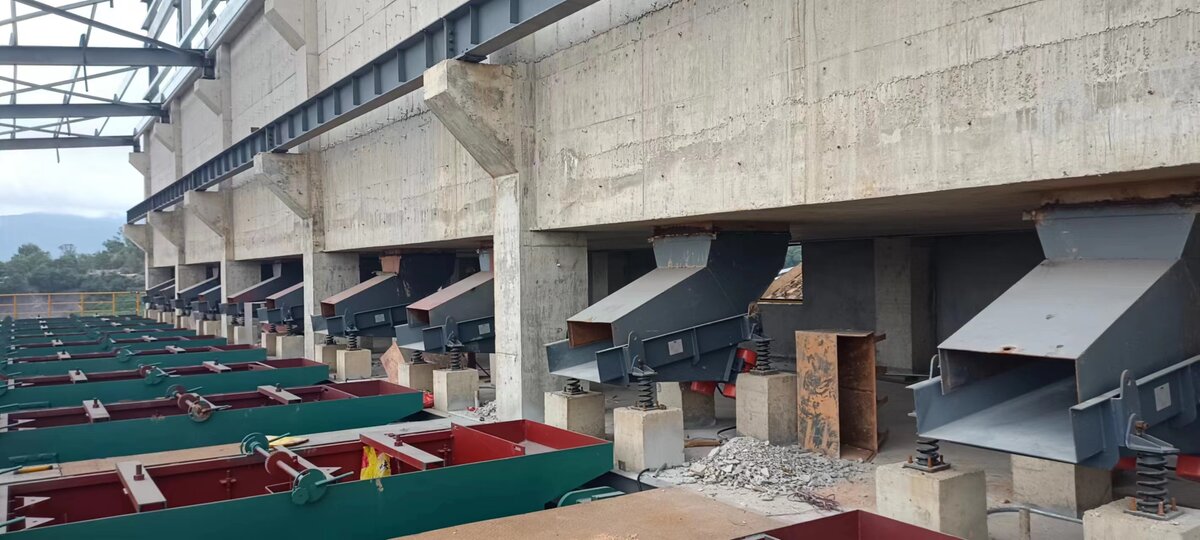

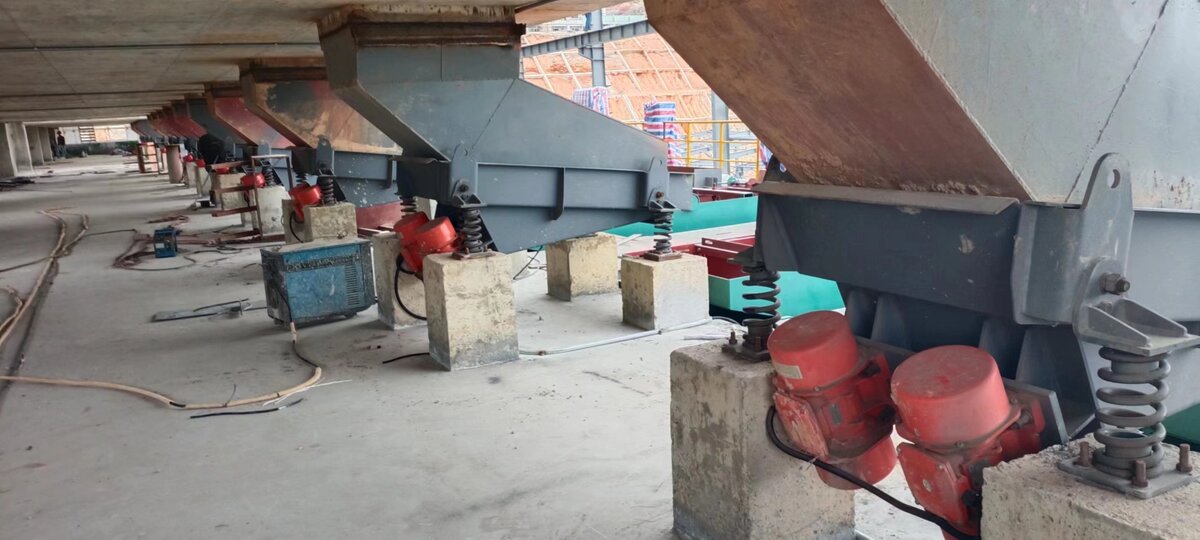

Application Cases
