Wheel Mobile Crushing Station

Wheel Mobile Crushing Station

Model: Wheel Series | Category: Mobile Crushing Station

OrePeak OK wheel-mounted mobile plant is a new generation of high-performance mobile production equipment designed by Shanghai OrePeak Technology Co., Ltd. (OREPEAK) based on hundreds of mobile crushing plant applications, specifically for medium and small production lines.

Contact Now Quick Quote
Product Introduction
Product Components
Product Advantages
Technical Parameters
Application Cases

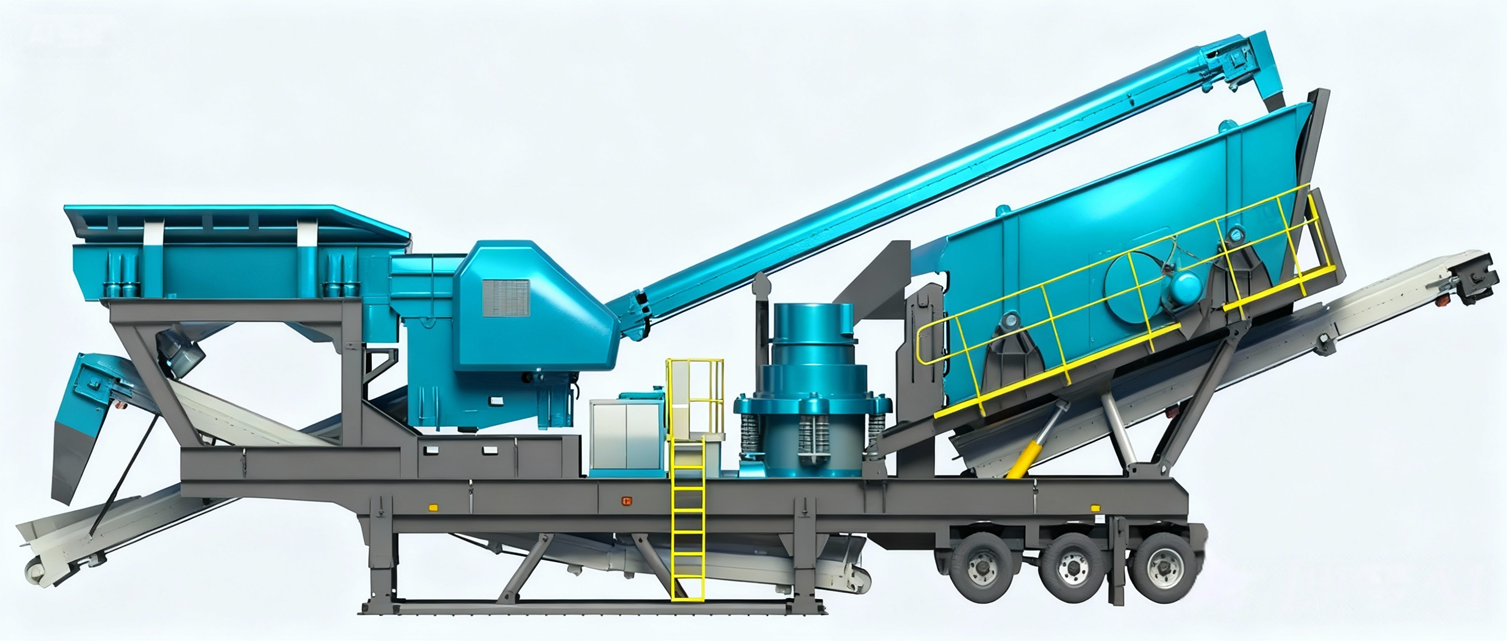

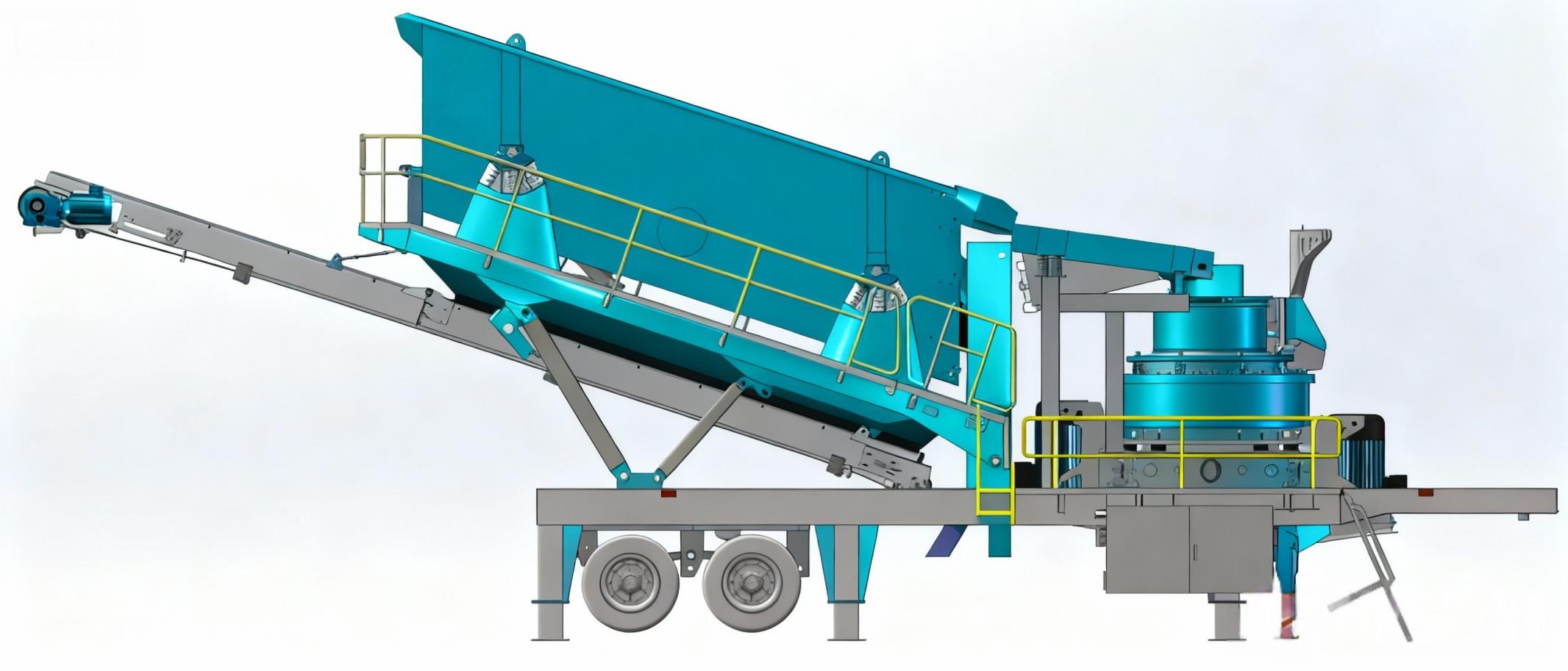

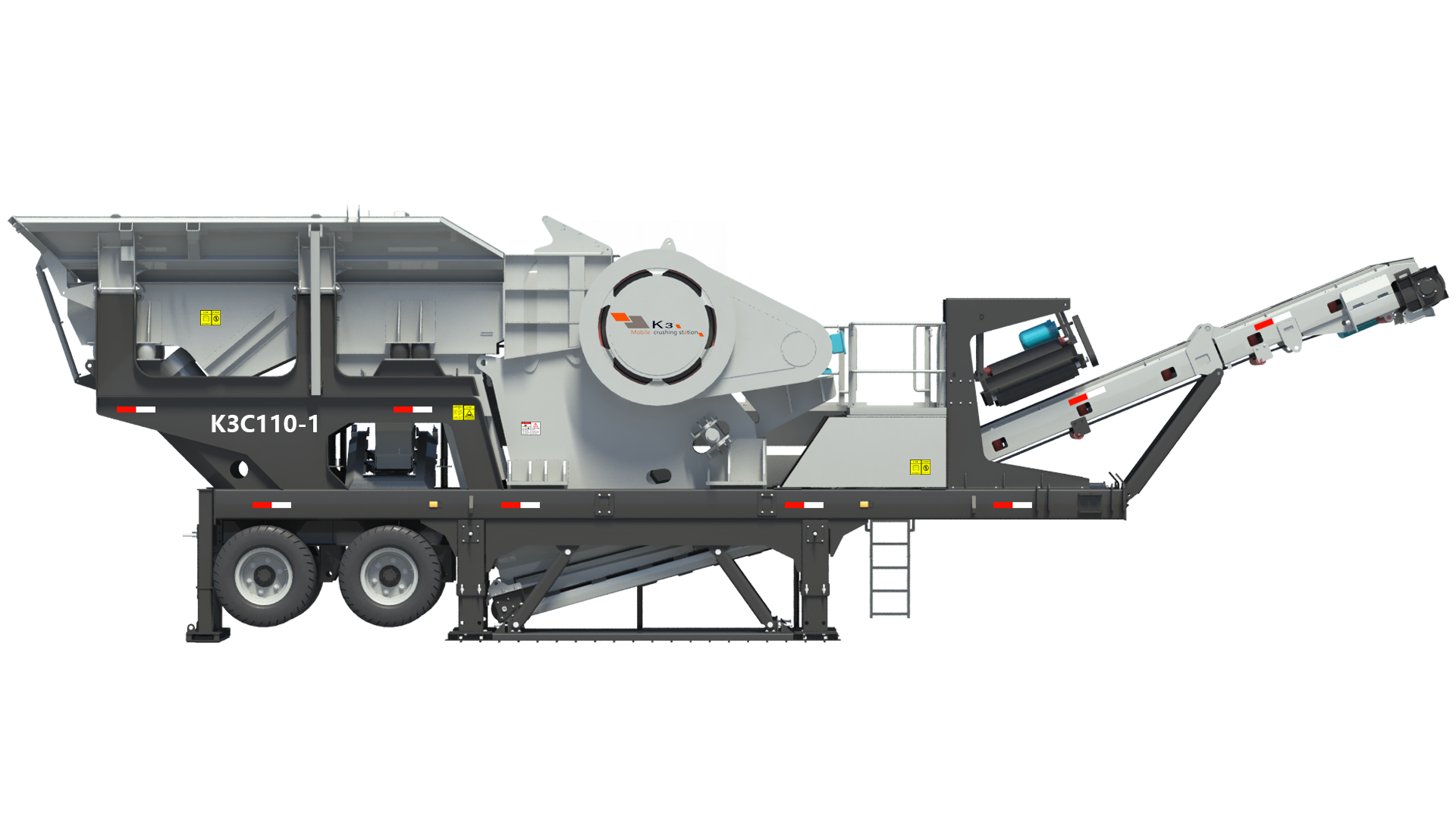

OrePeak OK Wheel Mobile Crushing Station

OrePeak OK wheel-mounted mobile plant is a new generation of high-performance mobile production equipment designed by Shanghai OrePeak Technology Co., Ltd. (OREPEAK) based on hundreds of mobile crushing plant applications and years of technical accumulation from field use, specifically for medium and small production lines (100-300T), suitable for processing various hard rocks, soft rocks and construction waste. It adopts modular full-vehicle design, foundation-free quick installation and commissioning, disassembly-free transportation convenience, and efficient, stable and safe production. This series of products has redefined the technical standards for mobile crushing equipment and is the preferred mobile crushing and screening production equipment in domestic and international markets.

Product Classification

The OrePeak OK series includes the following six types of mobile plant equipment:

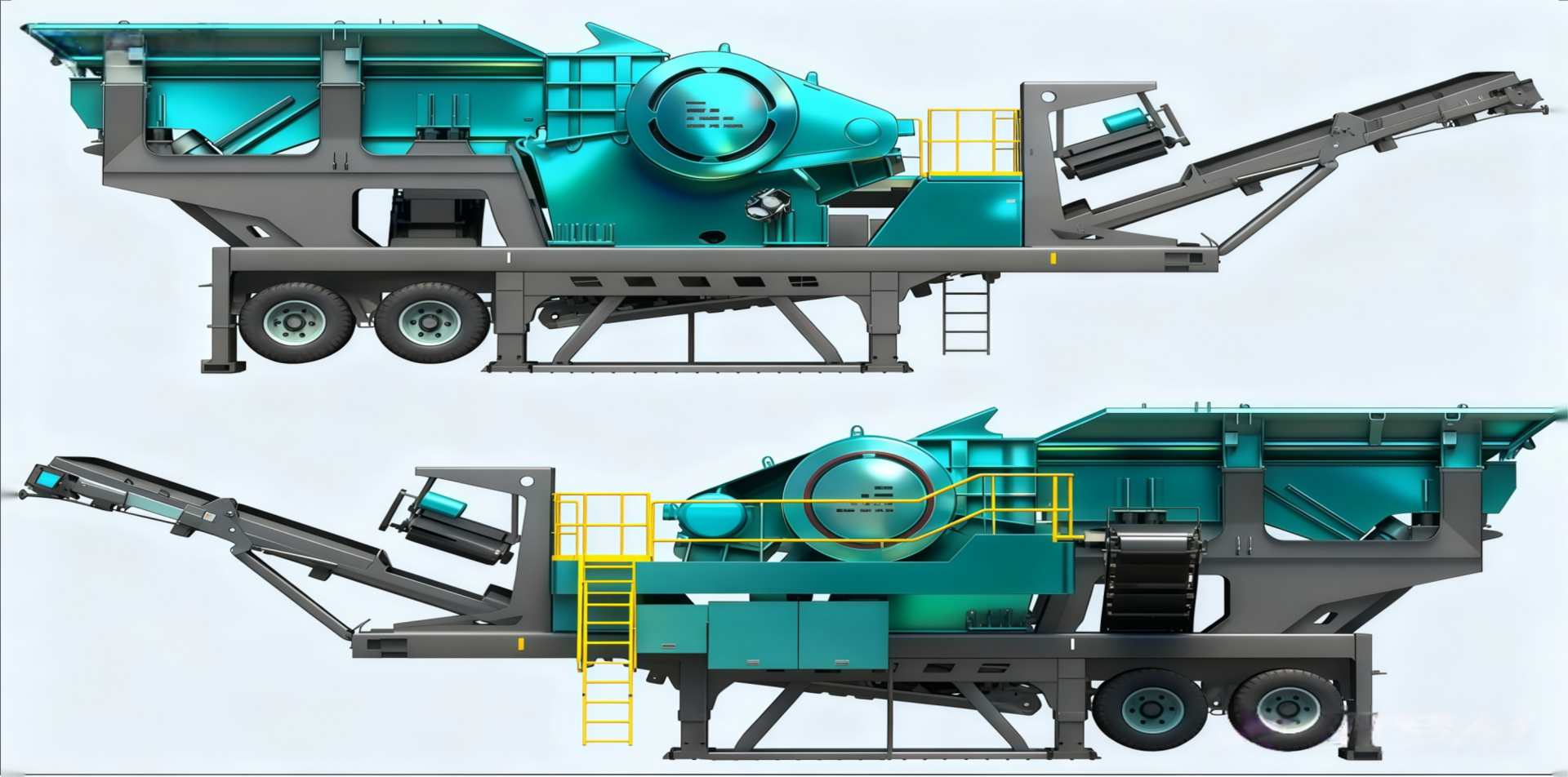

Coarse Crushing Mobile Crushing Station

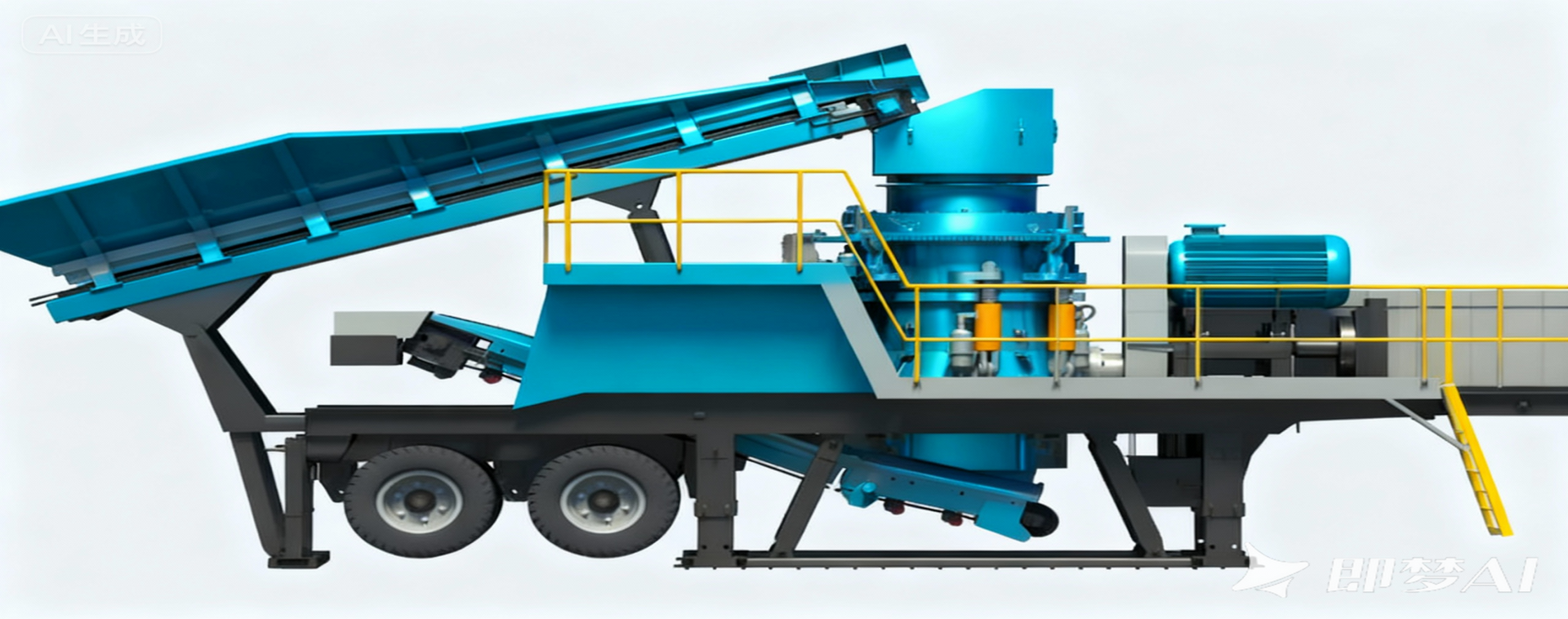

Medium & Fine Crushing Mobile Crushing Station

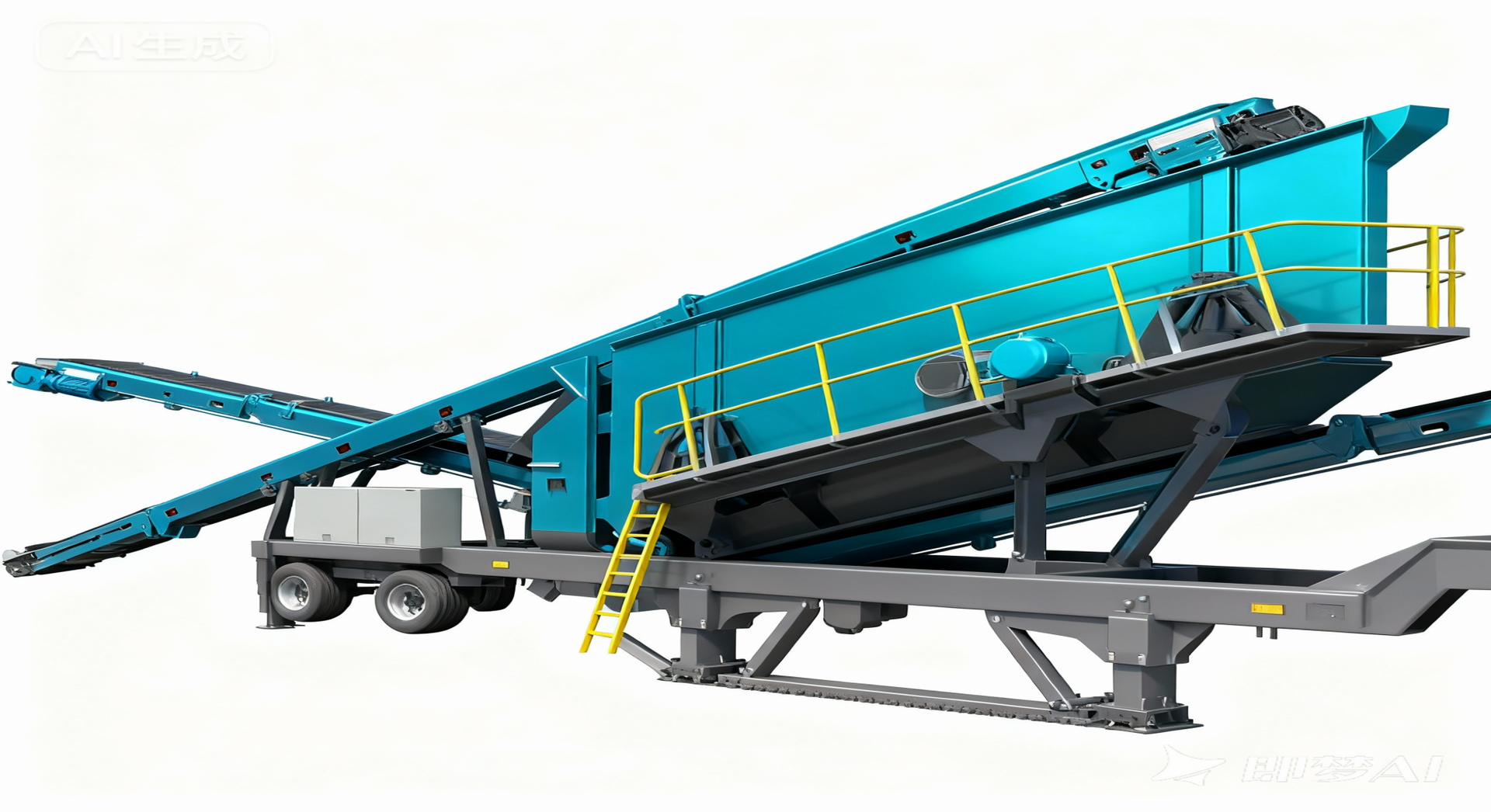

Screening Mobile Crushing Station
Sand Making Mobile Crushing Station

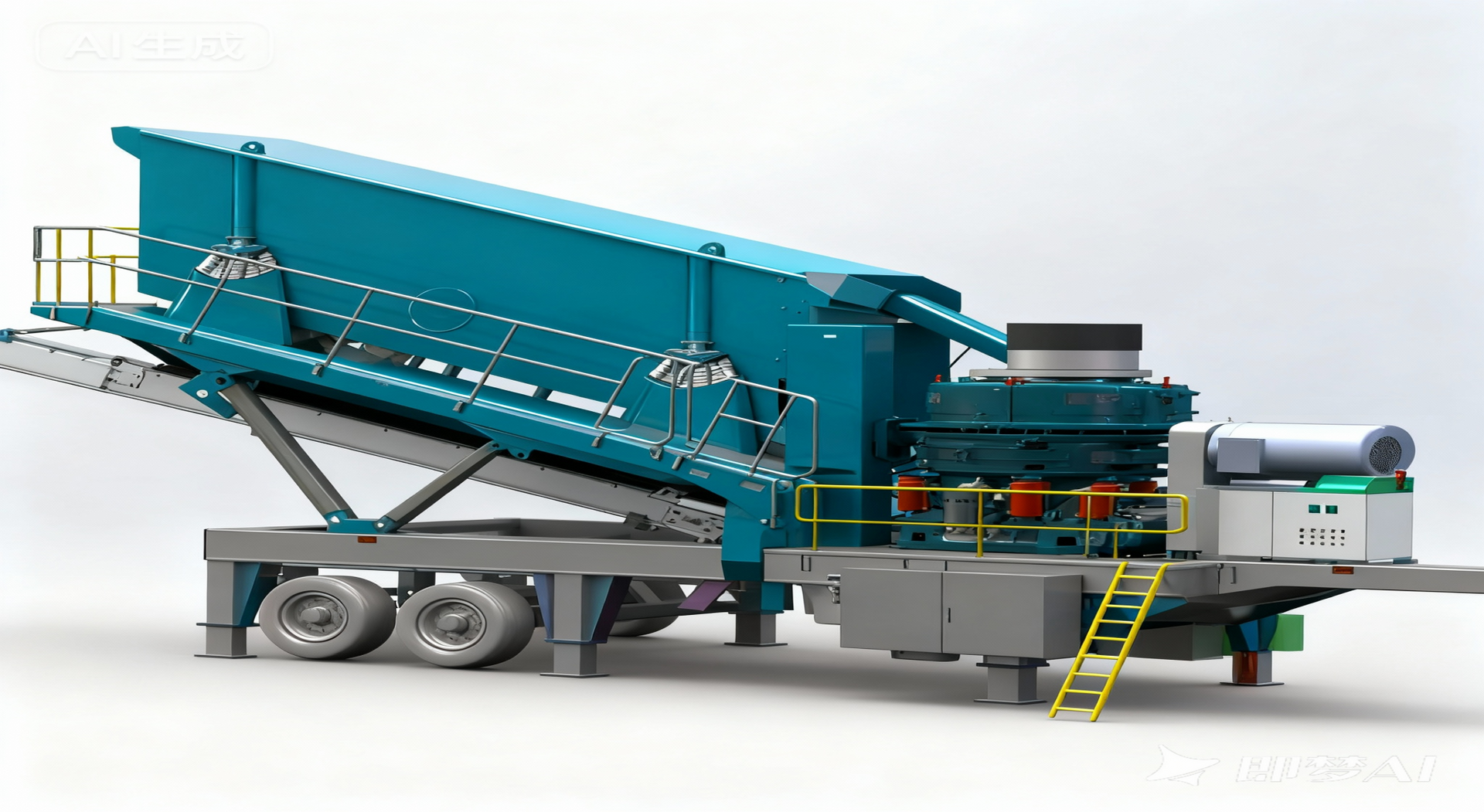

Medium & Fine Crushing Screening Mobile Crushing Station
Full Process Integrated Mobile Crushing Station

Product Advantages

1. Powerful feeding and soil removal function: According to needs, the feeder can be equipped with grate bars, with powerful grate screening of small materials and soil removal function, ensuring more complete processing capacity at the same tonnage level.

2. Large volume hopper design: The coarse crushing equipment's feeding hopper has a volume of 8m³, and the medium crushing equipment is equipped with a 4.5m³ transfer hopper, achieving continuous uninterrupted operation.

3. High-performance main engine configuration: Adopting high-efficiency crushing main engine, compact equipment structure, convenient installation, lighter than traditional equipment with higher production capacity.

4. Foundation-free quick installation: The operation site only requires a flat and compacted road surface, leveling and hardening, no cement foundation needed, significantly reducing infrastructure costs.

5. Disassembly-free transportation: The entire series realizes disassembly-free transportation for land shipment (including track shoes), sea container transportation, reducing transportation costs.

6. Environmentally friendly and efficient production: Equipped with spray dust removal system, achieving full-process work in small spaces, with unique environmental advantages.

Technical Parameters - OK Series Wheel Mobile Crushing Station

No.SeriesStandard ModelMatching EquipmentMax Feed Size(mm)Processing Capacity(t/h)Application
1Integrated EquipmentOK T70-4GF0936+PE500×750+PYB900+3YZS154843050-7070 ton hard rock crushing & screening
2OK T100-4GF0936+C80+HST100H1+S5X1845M-343080-120100 ton hard rock crushing & screening
3OK T150-4GF0936+C80+HST160H1(PFW1214)+S5X1845M-3430130-160150 ton soft & hard rock crushing & screening
4OK RW150-3GF0936+PFW1214II+S5X1845M-3500120-160150 ton construction waste crushing & screening
5Coarse Crushing EquipmentOK C80-1GF0936+C80430100-200150 ton hard rock coarse crushing
6OK C106-1GF1245+C106630160-400200-250 ton hard rock coarse crushing
7OK C113-1GF1245+C113650160-550300 ton hard rock coarse crushing
8OK F1214-1CGF0936+PFW1214530130-200150 ton soft rock crushing, no external belt conveyor
9OK F1315-1CGF1245+PFW1315700170-300200 ton soft rock crushing, no external belt conveyor
10Medium Crushing EquipmentOK H300-1HPT300C2(can replace HST160H1)170/300180-300200 ton hard rock medium crushing, no external belt conveyor
11OK F1214-1PFW1214III250130-200150 ton soft rock medium crushing, no external belt conveyor
12OK F1315-1PFW1315III300170-300200 ton soft rock medium crushing, no external belt conveyor
13Fine Crushing EquipmentOK V9532/1145-1VSI9532/VSI114535-45180-320200-300 ton fine crushing sand making, no external belt conveyor
14Screening EquipmentOK S1860/2160/2460-1S5X1860-3/S5X2160-3/S5X2460-320075-500100-300 ton screening, no external belt conveyor
15Medium Crushing & ScreeningOK H300S-2/H160S-23YZS2160+HPT300C2/HST160H1170/288190-380200 ton hard rock crushing & screening
16OK F1214S/1315S-23YZS1860/3YZS2160+PFW1214III/PFW1315III190/28090-280150-250 ton soft rock crushing & screening
17Fine Crushing & ScreeningOK V8522S/9532S/1145S-23YZS1860/3YZS2160/3YZS2460+VSI8522/VSI9532/VSI114535-45120-320150-300 ton sand making & screening

Product images, models, data, functions, performance, and specifications on this website are for reference only and may be improved. For specific information, please refer to the actual product and product manual. Unless otherwise specified, the data interpretation rights on this website are reserved by OrePeak.

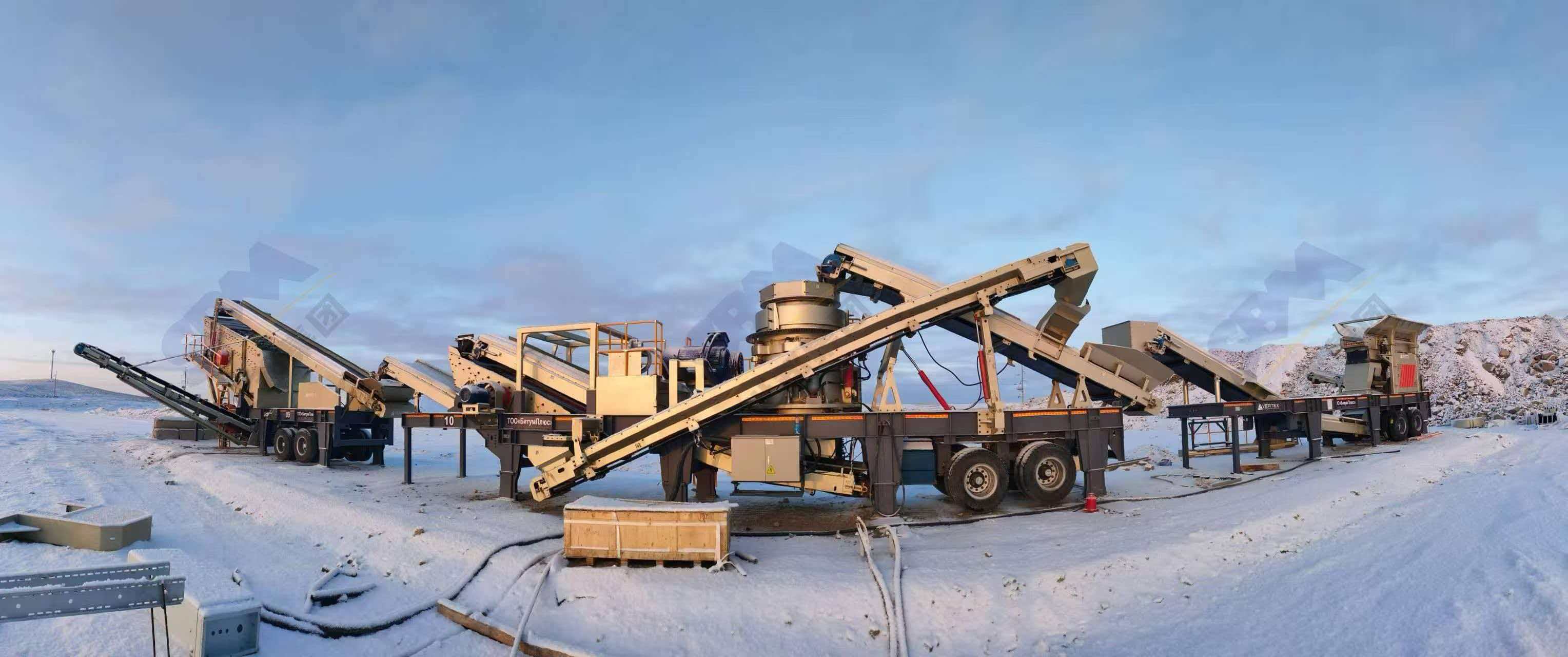

Case 1

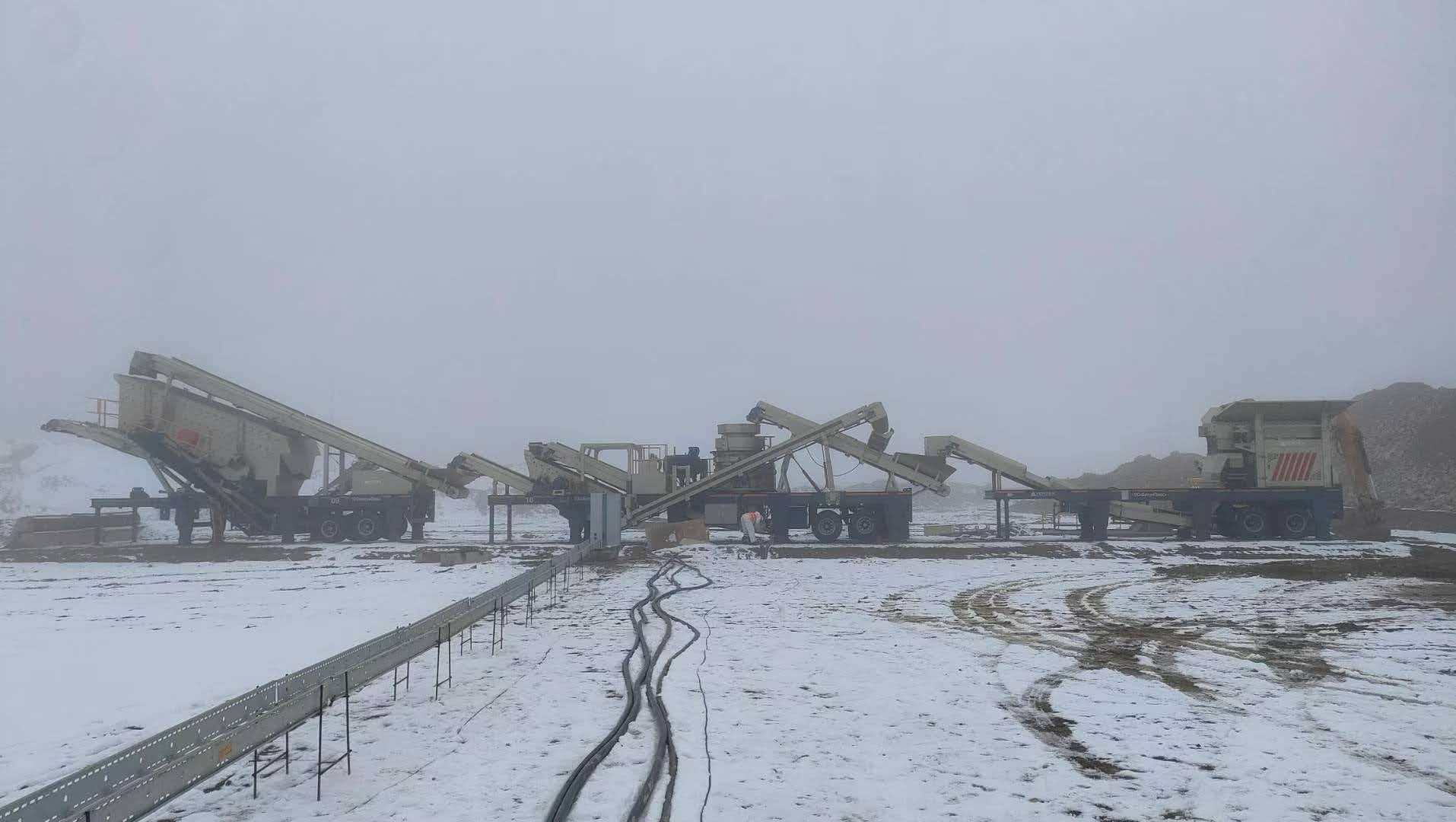

Case 2

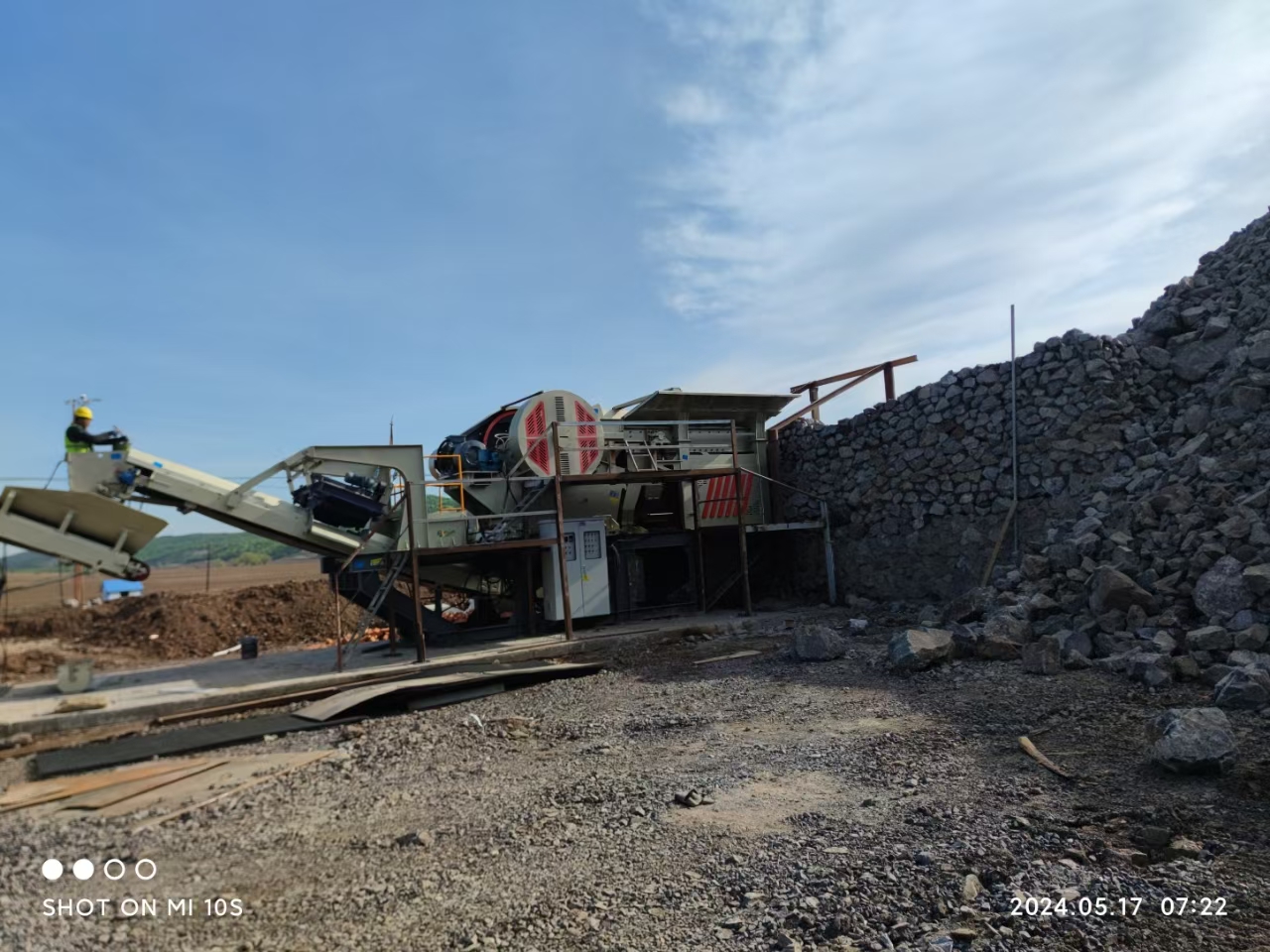

Case 3
