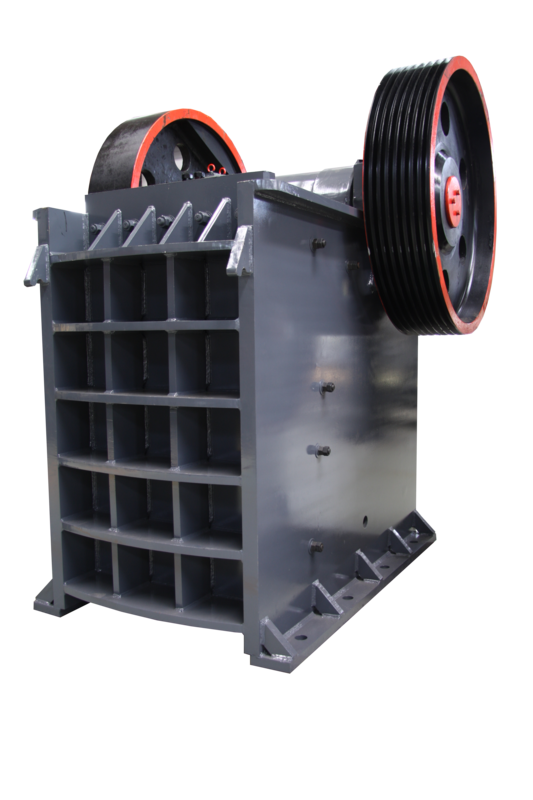

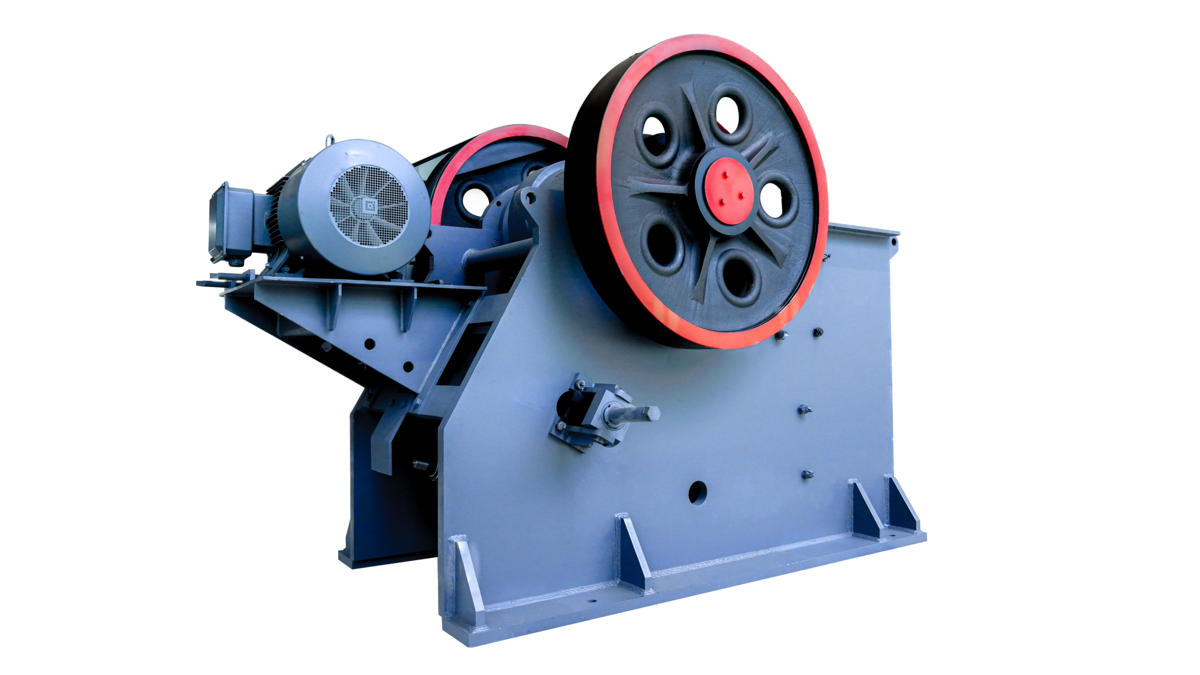

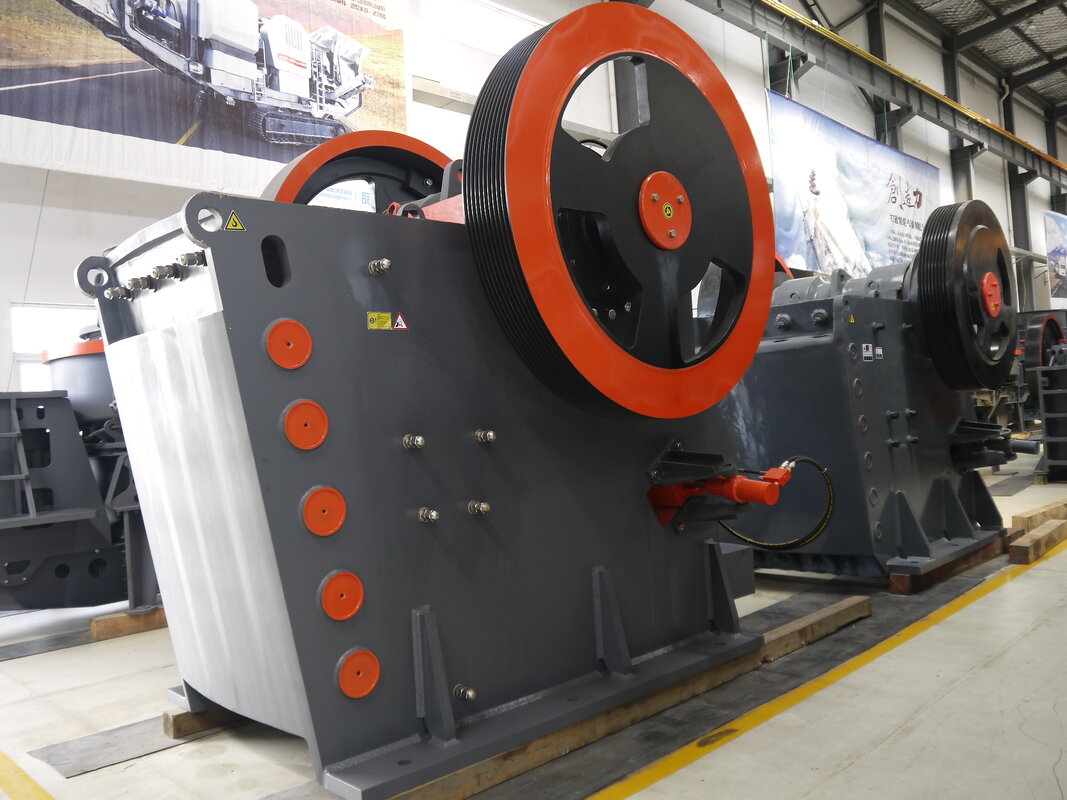

Jaw Crusher

Working Principle

The motor of the jaw crusher drives the belt and pulley. Through the eccentric shaft, the movable jaw moves back and forth and up and down. When the movable jaw pushes the movable jaw plate toward the fixed jaw plate, the material is crushed or split. When the movable jaw and movable jaw plate move backward under the action of the eccentric shaft and spring, the previously crushed or split material is discharged from the lower discharge opening of the jaw plate. As the motor continuously rotates, the crushing machine's movable jaw periodically crushes and discharges material, achieving batch production.

Product Advantages

Complete specifications to meet diverse needs: Over 30 years of development of the jaw crusher has resulted in a series of models developed to meet market demands, which can basically cover the crushing production needs of the current market.

Stable structure, reliable performance: To ensure efficient operation when crushing hard materials, the core rotating components of the jaw crusher include high-quality cast movable jaw body, heavy-duty forged eccentric shaft with large eccentricity, cast flywheel with high rotational inertia, and high-strength integral cast steel bearing housing. The powerful driving force combined with reasonable equipment speed ensures stable and efficient production.

Overload protection, safer production: When non-crushable material falls into the crusher causing the machine to exceed normal load, the designed toggle plate transmission device can automatically break, stopping the jaw crusher to avoid damage to the entire machine and ensuring production safety.

Easy maintenance, improved equipment operation rate: The equipment uses centralized grease lubrication, which can be configured with manual or automatic grease lubrication systems as needed, reducing maintenance difficulty and making discharge opening adjustment simpler and more efficient.
