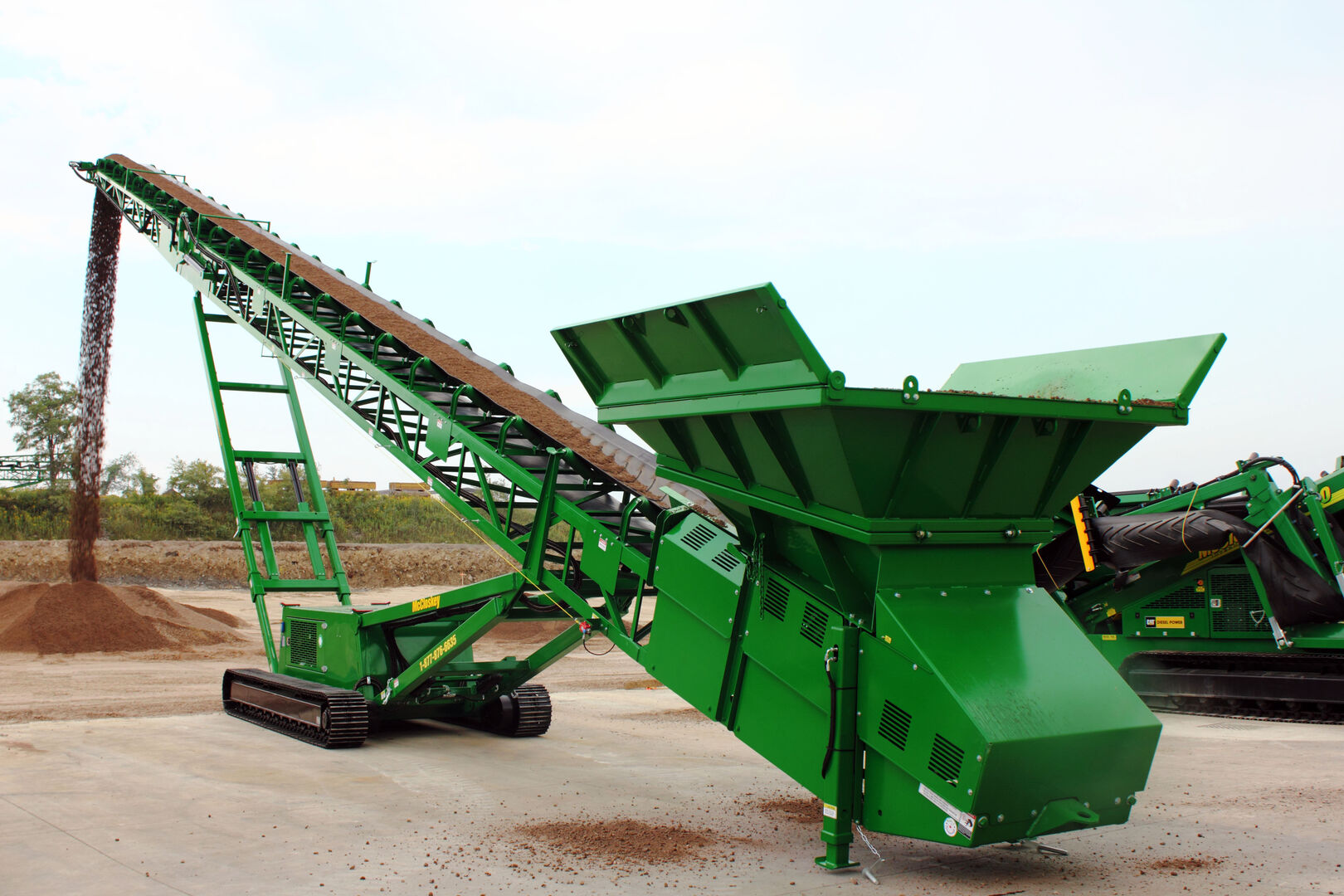

OTB(R) Series Crawler Mobile Stacker

Product Introduction

0TB (R) Series crawler mobile stacker can set different stacking angles, stacker stacking heights and positions according to the production environment. It can work independently or in conjunction with other equipment. This stacker is often paired with mobile crushing lines, with a stacking efficiency of up to 1500 tons per hour.

Wide Applications: Stacking of crushed stone at stone crushing stations, stacking of manufactured sand at sand making plants, stacking of river sand and sea sand at sand washing yards, stacking of ore at leaching piles in mineral processing plants, stacking at port storage yards, stacking of ore concentrate at mines, stacking of coal at coal washing plants, stacking at power plant silos, stacking at compost yards, stacking of wood chips and sawdust at paper mills, etc.

Remarks: OTB(R) crawler mobile radial rotating stacker, also known as crawler mobile rotating stacker.

Product Components

Content coming soon

Product Advantages

OTB Standard Type

High Processing Capacity: Stacker with material processing capacity of up to 1500 tons per hour.
High Automation: Highly automated and remote-controlled equipment.
Efficient Conveyor Belt: Equipped with efficient conveyor belt cleaner to meet bulk material stacking operations in various applications.
Compact Structure: The whole machine has a compact and sturdy structure.
Flexible Movement: Long conveying distance, large conveying angle, flexible movement, small footprint.
Convenient Adjustment: Automatic lifting device can conveniently adjust the stacking height.
Reduced Dependence: Eliminate/reduce the need for wheel loaders on site.
Easy Transport: Folding through tail and head folding devices for convenient transportation and on-site movement.

OTBR Radial Rotating Type

No Double Handling: Crawler mobile rotating stacker eliminates the need for double handling of bulk materials in storage.
Environmental Benefits: Effectively reduces degradation, compaction and pollution.
Wide Applicability: Material stacking speed range is 100-1000 tons per hour.
Large Particle Size Processing: Designed to stack materials with sizes from 0-300mm.
High Environmental Benefits: Reduces noise, dust and emissions.
High Safety Benefits: Reduces site traffic changes and possibility of accidents.
Long-distance Stacking: Crawler mobile radial rotating stacker length ranges from 15m to 31m, stacking height can reach 14m (45ft 6in).
Large Capacity Storage: Conical storage capacity up to 3500 tons (2,188 m³).
Ultra-large Inventory: Radial rotating stacking inventory at 180 degrees reaches 30,470 tons (19,050 m³).
Flexible Rotation: Crawler mobile rotating stacker uses crawler-type radial rotating device.

Technical Specifications

Type	Model	Conveyor Length	Belt Width	Capacity	Discharge Height	Stacking Volume	Remarks
Standard Type	OTB1020	20m	1000mm	700t/h	7.8m	758.9m³
	OTB1024	24m	1000mm	700t/h	9.3m	1270.8m³
	OTB1030	30m	1000mm	700t/h	11.4m	2435.3m³
	OTB1024L	24m	1000mm	700t/h	8.7m	976m³
	OTB1030L	30m	1000mm	700t/h	11.1m	2027.1m³
Radial Rotating Type	OTBR1020	20m	1000mm	700t/h	7.8m	758.9m³	Steel plate structure
	OTBR1024	24m	1000mm	700t/h	9.3m	1270.8m³
	OTBR1030	30m	1000mm	700t/h	11.4m	2435.3m³
	OTBR1024L	24m	1000mm	700t/h	8.7m	976m³	Truss structure

Product images, models, data, functions, performance, and specifications on this website are for reference only and may be improved. For specific information, please refer to the actual product and product manual. Unless otherwise specified, the data interpretation rights on this website are reserved by OrePeak.er may vary. Parameters are subject to change. Please contact us for specific requirements.

Application Cases

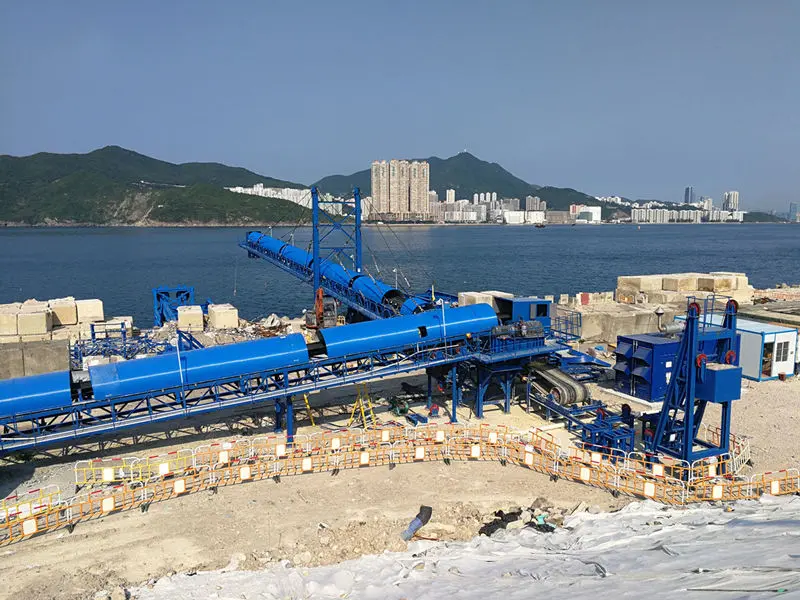

Hong Kong Tseung Kwan O Project

Project Location: Tseung Kwan O, Hong Kong

Contract Method: We are responsible for design, material and purchased component procurement and inspection, manufacturing, assembly, testing, transportation, system installation and commissioning.

Standards: Bid winning, British standards and Hong Kong regional specifications.

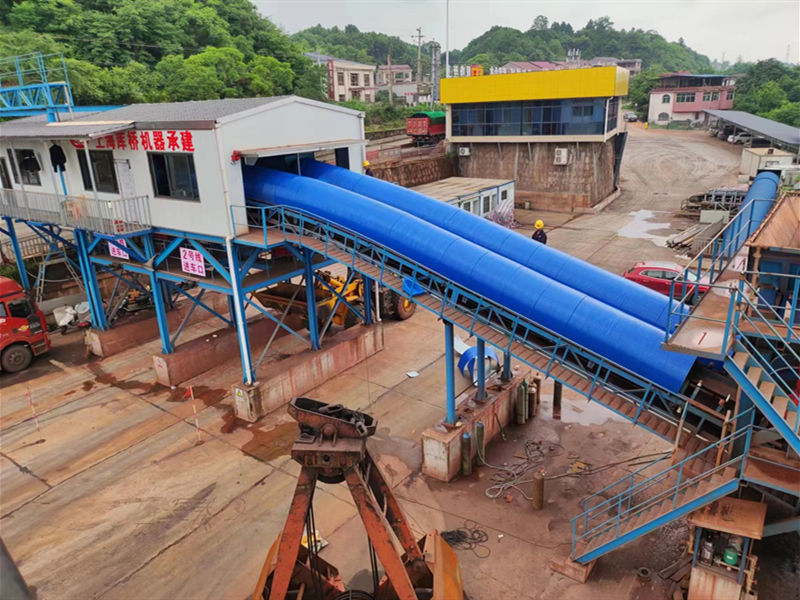

Hunan Hongchang Wharf Project

Project Description: Need to feed the belt conveyor through multiple discharge hoppers, then transport via belt conveyor to the telescopic chute, and finally load trucks through the dust-reducing telescopic chute.
