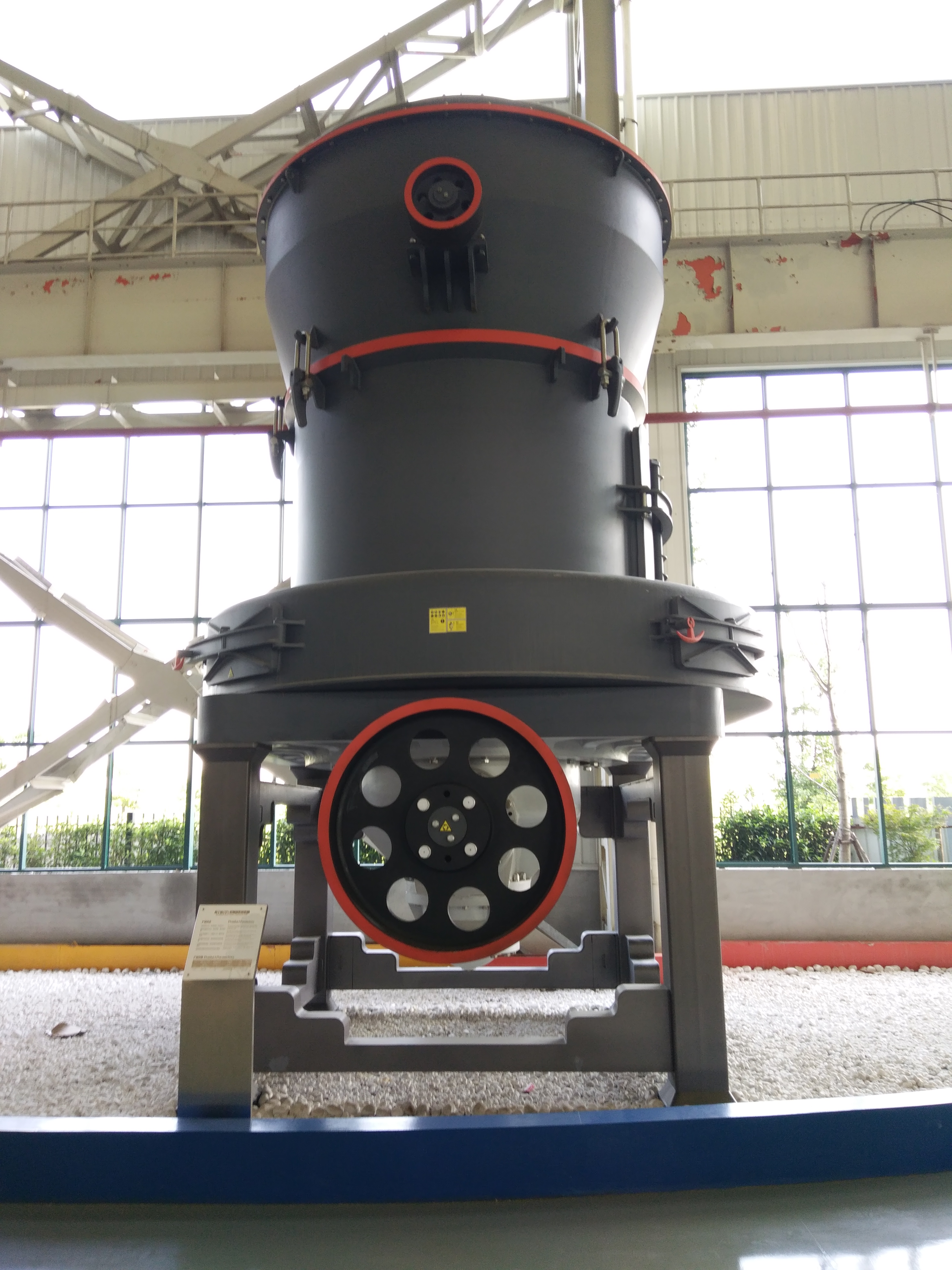

Suspension Roller Grinding Mill

Suspension Roller Grinding Mill

Model: YGM, MTM, MTW Series | Category: Grinding Equipment

High-Pressure Suspension Roller Grinding Mill is advanced grinding equipment, widely used in mining, metallurgy, chemical, building materials and other fields.

Get a Quote Now
Product Introduction
Working Principle
Product Advantages
Technical Specifications
Application Cases

Product Introduction

High-Pressure Suspension Roller Grinding Mill is advanced grinding equipment, widely used in mining, metallurgy, chemical, building materials and other fields.

Working Principle

Based on high-pressure gas driving the roller to rotate through piston push, while forming a high-pressure compression zone between the roller and the grinding disc, the material is compressed, friction-ground and milled, thus grinding the raw material into the required powder or particles. This equipment can efficiently grind ores and non-metallic minerals of various hardness, providing important industrial powder-making solutions.

Product Advantages

  1. Efficient Grinding: Through high-pressure gas driving roller rotation, a high-pressure compression zone is formed, effectively grinding ores and non-metallic minerals of various hardness into powder or particles.
  2. Energy Saving & Environmental Protection: The equipment operates stably with high energy efficiency ratio, reducing energy consumption and meeting modern industrial requirements for energy saving and environmental protection.
  3. Strong Adaptability: Applicable to mining, metallurgy, chemical and other industrial fields, processing ores and non-metallic minerals of various hardness and shapes.
  4. Simple Operation & Maintenance: The equipment has a reasonable structure, simple operating interface, convenient maintenance, easy to operate, and low operating costs.

Technical Specifications

Series Model Feed Size(mm) Product Size(mm) Capacity(t/h) Main Motor(KW) Blower(kw) Classifier(kw)
YGM YGM7815 <15 0.8 – 0.045 1 – 3 18.5 18.5 2.2
YGM9517 <25 0.8 – 0.045 2.5 – 6.5 37 37 5.5
YGM4121 <30 0.8 – 0.045 3.5 – 9 75 75 7.5
MTM MTM100 <25 1.6-0.045, min 0.038 3 – 8 37 37 5.5
MTM130 <30 1.6-0.045, min 0.038 6 – 11 75 75 7.5
MTM160 <35 1.6-0.045, min 0.038 9 – 22 132 132 18.5
MTW MTW110 <30 1.6-0.045, min 0.038 3 – 9 55 55 7.5
MTW138 <35 1.6-0.045, min 0.038 6 – 17 90 110 18.5
MTW158 <40 1.6-0.045, min 0.038 7 – 21 132 132 22
MTW198 <45 1.6-0.045, min 0.038 12 – 33 220 250 37
MTW218 <50 1.6-0.045, min 0.038 15 – 45 280 315 55

Product images, models, data, functions, performance, specifications and parameters on this website are for reference only. The above content may be improved. For specific information, please refer to the actual product and product manual. Unless otherwise specified, the interpretation of data on this website is retained by OrePeak Technology.

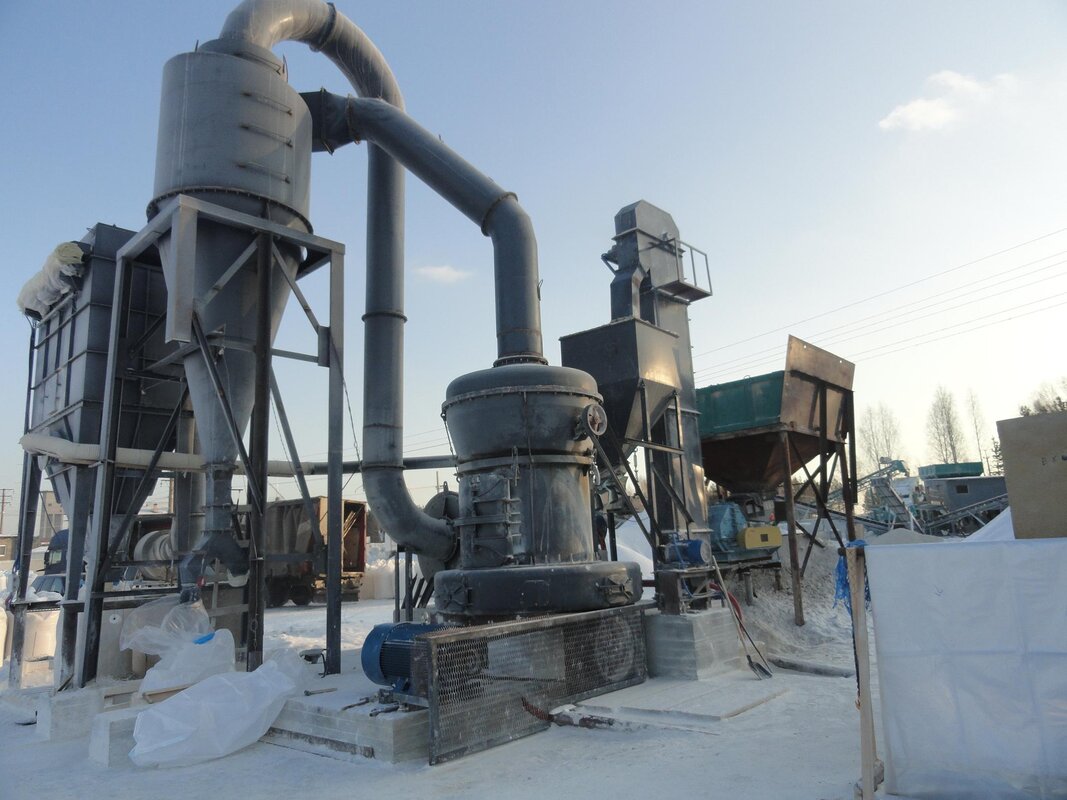

Case 1
