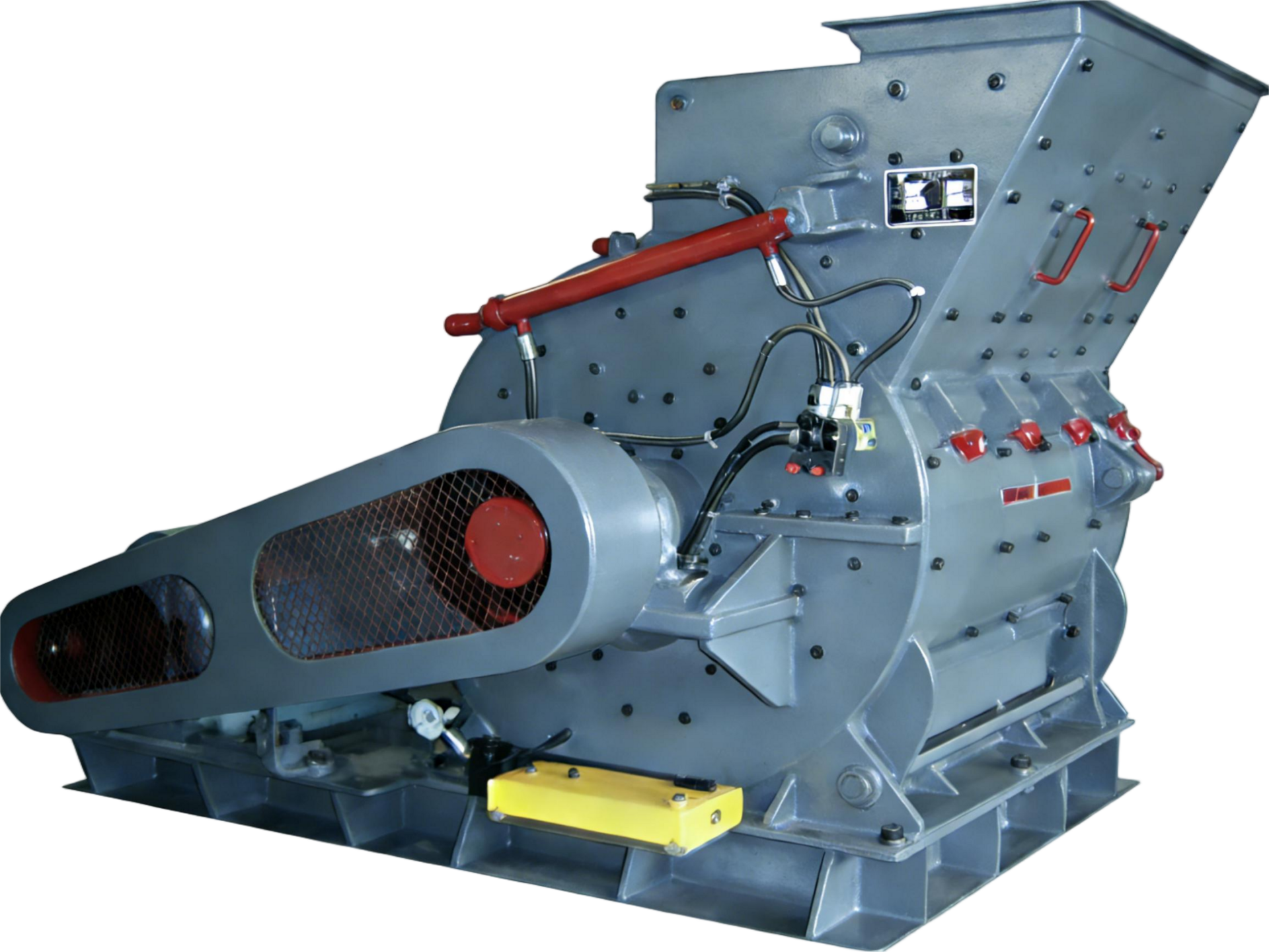

Hammer Crusher

Hammer Crusher

Model: PC Series | Category: Hammer Crusher

PC hammer crusher is a common engineering equipment, mainly used to crush large blocks of ore or rock into required particle sizes. With simple structure and convenient operation, it can efficiently complete crushing tasks.

Contact Now Quick Quote
Product Introduction
Working Principle
Product Advantages
Technical Parameters
Application Cases

Product Introduction

PC hammer crusher is a common engineering equipment, mainly used to crush large blocks of ore or rock into required particle sizes. Its working principle is based on high-speed rotating hammers that apply impact force to materials, causing them to break. This crusher has a simple structure and convenient operation, can efficiently complete crushing tasks, and is suitable for various industrial applications.

Working Principle

The motor drives the rotor to rotate, and the rotor drives the hammer plates on the rotor to rotate at high speed. When materials enter the crushing cavity, they are crushed by high-speed impact, collision, and shearing of the hammer plates. Finished materials are discharged through the screen bars at the bottom of the machine. Discharge particle size can be adjusted by adjusting the screen bar gap.

Product Advantages

  1. Uniform Large Particle Size: Hammer crusher uses high-speed rotating hammer heads to impact, collide, grind and crush materials, with large crushing ratio. It can crush materials into uniform fine particles, suitable for occasions requiring fine crushing.
  2. High Efficiency, Energy Saving, High Production: Using high-speed rotating hammer heads for crushing, this equipment has very high crushing efficiency and can achieve high production. At the same time, due to good crushing effect, it can reduce energy consumption in subsequent operations, achieving energy-saving production.
  3. Simple Structure, Convenient Maintenance: Hammer crusher has a relatively simple structure, mainly composed of machine housing, rotor, hammer heads, and screen plates. Its maintenance and repair are relatively convenient, and wear parts like hammer heads and screen plates are easy to replace, facilitating daily maintenance and care.
  4. Strong Adaptability, Wide Range: PC hammer crusher is suitable for crushing various materials, including coal, limestone, gypsum, ore, etc. It can crush both soft materials and materials with higher hardness, with wide applicability.

Technical Parameters

Model Feed Size(mm) Discharge Size(mm) Capacity(t/h) Motor Power(kw) Weight(t) Overall Dimensions(mm)
PCΦ400*300 ≤200 25 10 11 0.89 900*670*860
PCΦ600*400 ≤250 30 10-22 22 1.5 1200*1050*1200
PCΦ800*600 ≤250 25 18-40 55 3.8 1310*1180*1310
PCΦ1000*800 ≤350 35 25-50 75 4.16 1600*1390*1575
PCΦ1000*1000 ≤300 35 30-55 132 8 1800*1590*1775
PCΦ1250*1250 ≤350 35 35-65 180 14 2000*1600*1890
PCΦ1400*1400 ≤350 35 50-100 280 28 2365*1870*2220
PCΦ1600*1600 ≤350 35 100-150 480 37.5 3050*2850*2800

Product images, models, data, functions, performance, and specifications on this website are for reference only and may be improved. For specific information, please refer to the actual product and product manual. Unless otherwise specified, the data interpretation rights on this website are reserved by OrePeak.
