Multi-cylinder Cone Crusher

Product Introduction

OREPEAK Multi-cylinder Hydraulic Cone Crusher is a typical crushing equipment for medium and fine crushing of hard materials. Based on the spring cone crusher structure and lamination crushing principle, it has achieved breakthrough optimization of the structure, significantly improving equipment performance and crushing capacity. The matching hydraulic lubrication system ensures more intelligent and reliable operation. Applied in mining, metallurgy, construction, chemical, electric power, transportation and other fields as medium and fine crushing equipment.

Working Principle

During operation, the motor drives the equipment transmission shaft to rotate through belt pulleys and V-belts. The transmission shaft drives the eccentric bushing to rotate around the main shaft through large and small bevel gears. The eccentric bushing drives the dynamic cone to perform pendulum motion, causing the dynamic cone and fixed cone to alternately approach and move away from the bowl-shaped bearing. Materials in the crushing cavity formed by the bowl-shaped bearing and crushing wall are continuously subjected to compression, impact and crushing. Crushed materials are discharged from the bottom. The hydraulic system can adjust the discharge size and clean the crushing cavity. The locking protection oil cylinder mainly serves for overload protection and cleaning the crushing cavity. During normal crushing, it absorbs and buffers the impact from adjustment ring jumping caused by a few hard materials.

Product Advantages

Good Structure, High Efficiency: Based on the unique structure of fixed main shaft and eccentric bushing rotation around the main shaft, the transmission components and lubrication sealing structure design are further optimized. The equipment has stronger load-bearing capacity, larger installed power, higher efficiency and lower noise.
Lamination Crushing, Good Particle Shape: Using lamination crushing principle for material crushing, the crushing efficiency is high and wear part consumption is low. The crushed product has cubic shape with high fine particle content.
Multiple Cavities, Diverse Applications: Configured with multiple medium and fine crushing cavities. Users only need to replace a small number of parts such as cavity liners to convert between different cavities.
PLC Control, Simple Operation: Equipped with advanced PLC electrical system for continuous monitoring of the crusher and providing alarms and displaying operating parameters.
Good Cost Control, Low Price: With complete management and cost control system, product cost control is reasonable and prices are competitive.

HPT Series Multi-cylinder Cone Crusher Technical Parameters

Model	Cavity Type	Feed Opening Size(mm)	Min Discharge Size(mm)	Capacity(t/h)	Max Installed Power(kW)	Overall Dimensions(mm)
HPT100	C1(Extra Coarse)	140	19	75-140	90	1705×1510×1583
	C2(Coarse)	100	13	60-110	90	1705×1510×1583
	M(Medium)	70	9	52-100	90	1705×1510×1583
	F1(Fine)	50	6	45-90	90	1705×1510×1583
HPT200	C2(Coarse)	185	19	145-250	160	2135×1750×1927
	M(Medium)	125	16	135-235	160	2135×1750×1927
	F1(Fine)	95	13	115-220	160	2135×1750×1927
	F2(Extra Fine)	75	10	90-190	160	2135×1750×1927
HPT300	C1(Extra Coarse)	230	25	220-440	250	2725×2110×2871
	C2(Coarse)	210	19	190-380	250	2725×2110×2871
	M(Medium)	150	16	175-320	250	2725×2110×2871
	F1(Fine)	105	13	145-280	250	2725×2110×2871
HPT400	C1(Extra Coarse)	295	30	300-630	315	2775×2370×2295
	C2(Coarse)	251	25	285-560	315	2775×2370×2295
	M(Medium)	196	20	250-490	315	2775×2370×2295
	F1(Fine)	110	13	180-345	315	2775×2370×2295
HPT500	C1(Extra Coarse)	330	38	425-790	400	2800×3480×4050
	C2(Coarse)	290	30	370-700	400	2800×3480×4050
	M(Medium)	210	22	330-605	400	2800×3480×4050
	F1(Fine)	135	16	270-535	400	2800×3480×4050
HPT650	C1(Extra Coarse)	328	30	415-790	500	2850×3520×3100
	C2(Coarse)	280	25	410-715	500	2850×3520×3100
	M(Medium)	195	20	365-630	500	2850×3520×3100
	F1(Fine)	105	13	270-535	500	2850×3520×3100
HPT800	C1(Extra Coarse)	350	38	570-1200	630	3970×3345×4235
	C2(Coarse)	299	32	520-1050	630	3970×3345×4235
	M(Medium)	265	25	475-950	630	3970×3345×4235
	F1(Fine)	220	16	370-800	630	3970×3345×4235

Note: Product images, models, data, functions, performance, specifications and parameters on this website are for reference only and may be subject to improvement. Please refer to the actual product and instruction manual for specific information.

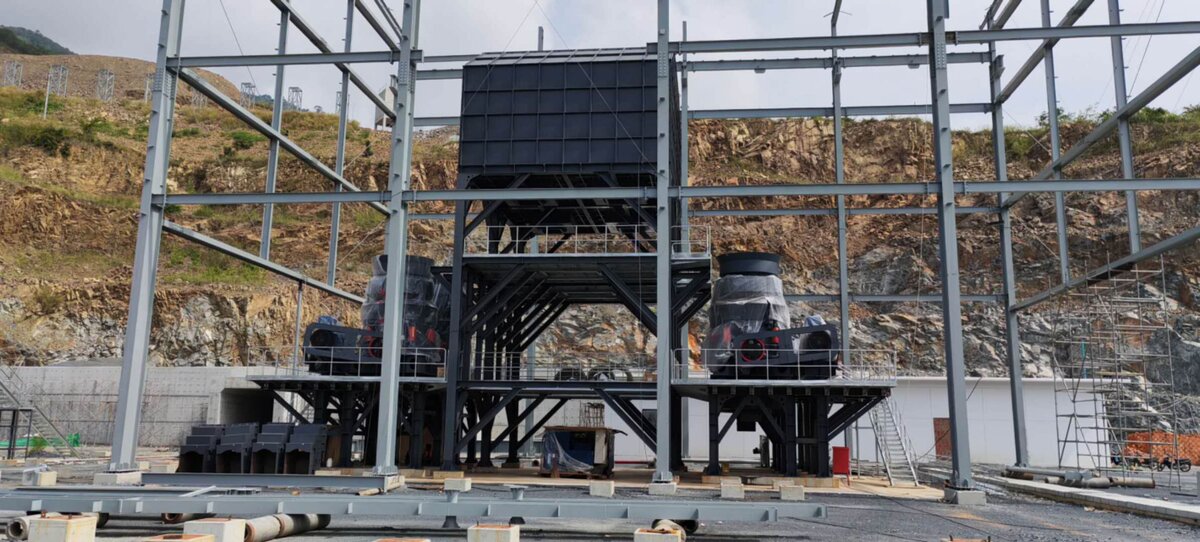

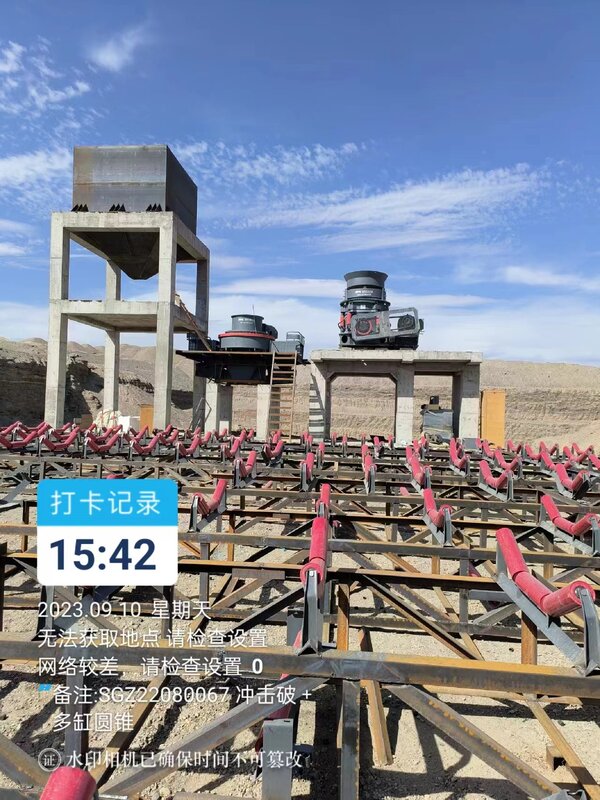

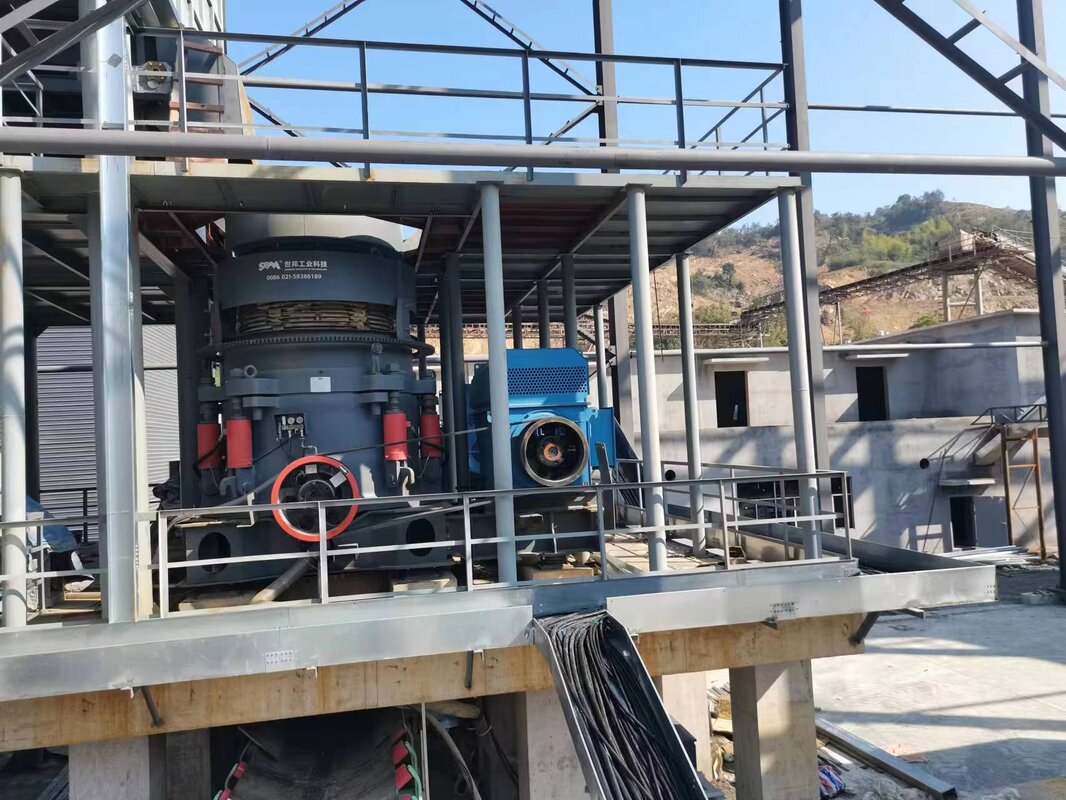

Application Cases
