O6X Series Belt Conveyor

Model: O6X Series | Category: Conveyor Equipment

O6X Series Belt Conveyor is a new generation of bulk material conveying equipment designed by OREPEAK based on extensive experience in design, manufacturing, installation, and usage, closely combined with market conditions and user needs.

Contact Now

Quick Quote

Product Introduction

Working Principle

Product Advantages

Technical Parameters

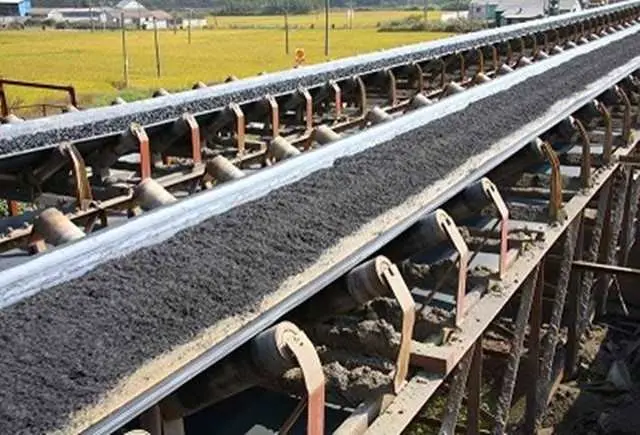

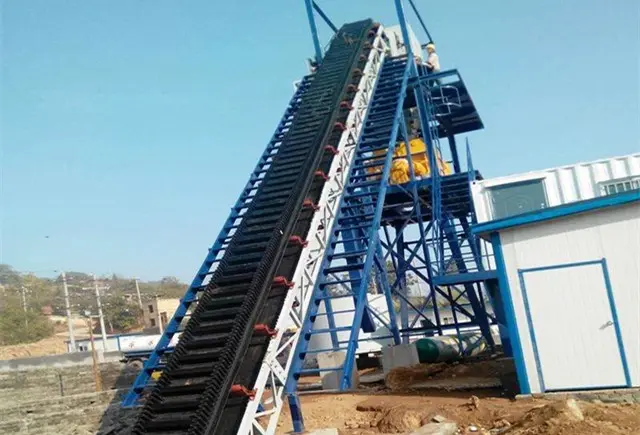

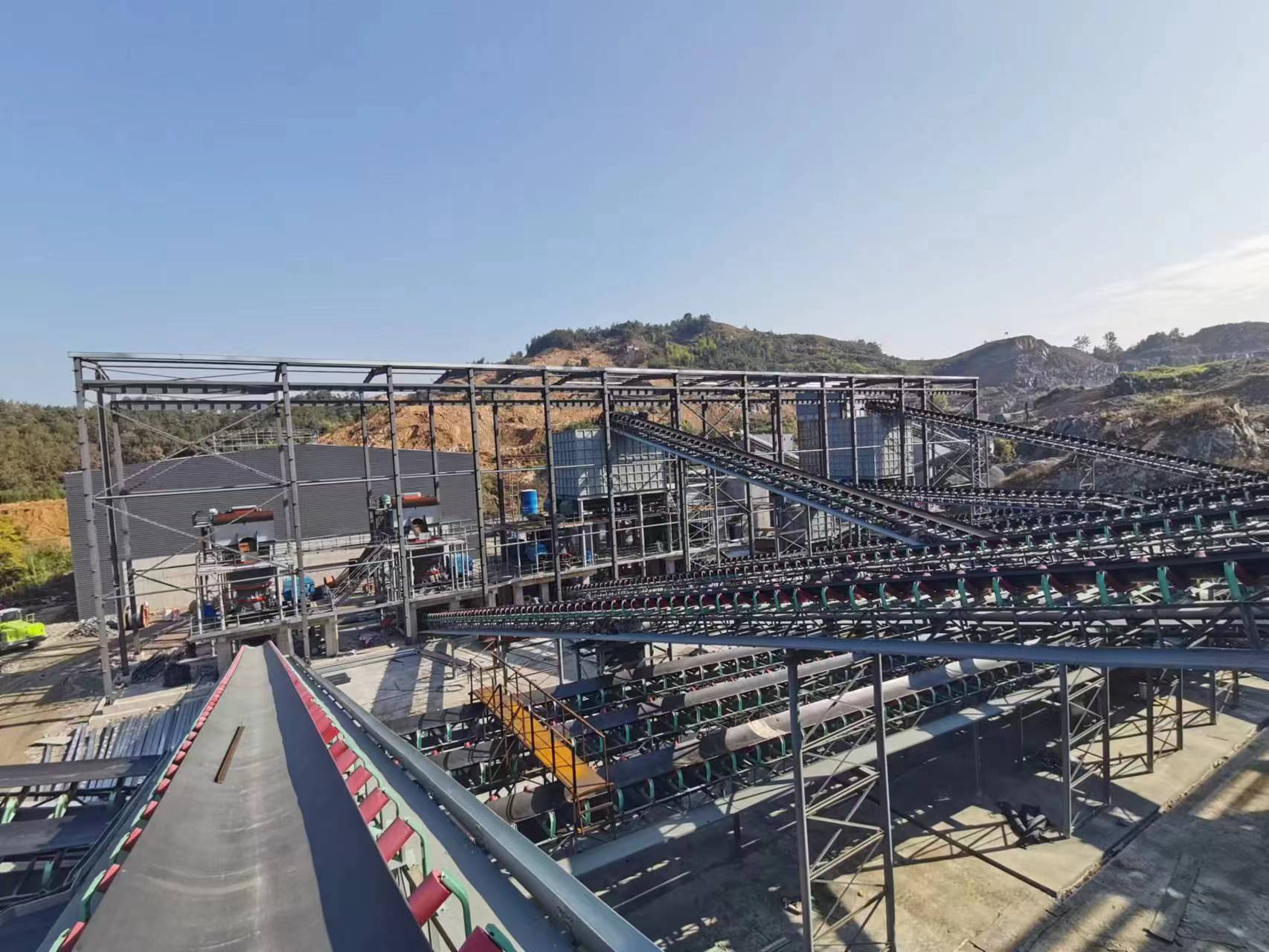

Application Cases

Product Introduction

Feed Size: 0-300mm

Production Capacity: 150-900 tons/hour

Applicable Materials: Granite, marble, basalt, limestone, quartzite, river pebbles, copper ore, iron ore, etc.

Working Principle

Using the conveyor belt as the traction and load-bearing component, this continuous conveying equipment transports materials through the movement of the conveyor belt that carries the materials. The conveyor belt forms an endless loop around the drive pulley and take-up pulley. The upper and lower conveyor belts are supported by idlers to limit the belt's deflection and sag. The tensioning device provides the necessary tension for the normal operation of the conveyor belt. During operation, the drive device drives the drive pulley, and the friction between the drive pulley and the conveyor belt drives the belt to run. Materials are loaded onto the conveyor belt and move together with the belt.

Product Advantages

Safe and attractive appearance

Simple installation

Safe production

Competitive price

Technical Parameters

Model	Belt Width(mm)	Inclination Angle(°)	Belt Speed(m/s)	Max Feed Size(mm)	Conveying Capacity(t/h)	Power(kW)
O6X500	500	0-17°	1.5	100	150	4-11
O6X650	650	0-17°	1.6	130	250	4-11
O6X800	800	0-17°	1.4	180	400	5.5-15
O6X1000	1000	0-17°	1.4/1.5	250	600	7.5-18.5
O6X1200	1200	0-17°	1.4/1.5	300	900	11-22

Note: Product images, models, data, functions, performance, specifications and parameters on this website are for reference only and may be subject to improvement. For specific information, please refer to the actual product and product manual.
