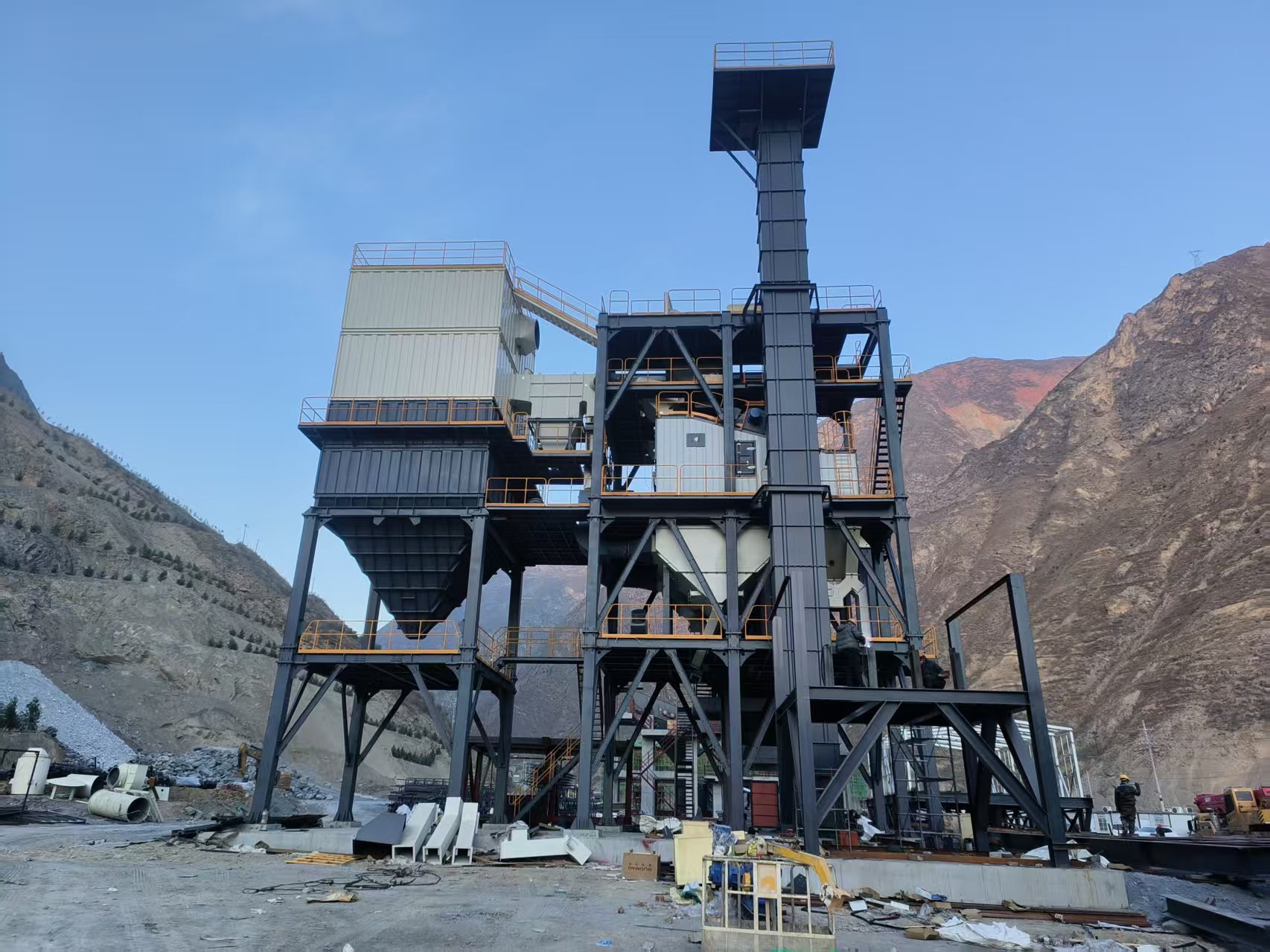

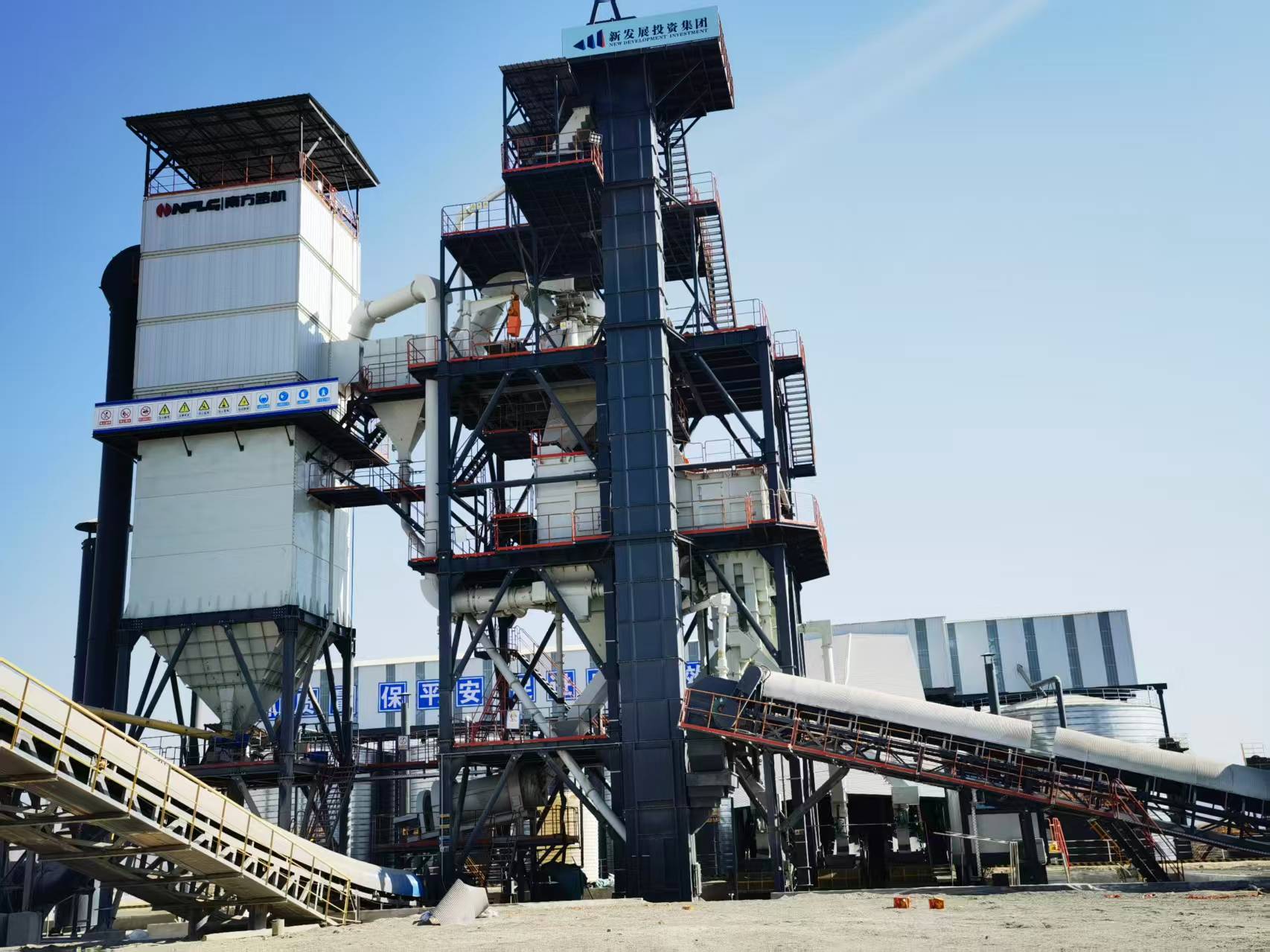

Application Cases

Product Introduction

Bucket elevator is a type of vertical lifting conveyor for lump, granular and powdered materials. According to different traction forms, it is divided into three types: chain, plate chain and belt. Widely used in mining, metallurgy, building materials, chemical and other industries, it is an ideal equipment for vertical conveying of bulk materials.

Product Components

Bucket elevator mainly consists of the following components: housing, traction member (conveyor chain/belt), buckets, driving wheel (head pulley), reversing wheel (tail pulley), tensioning device, guide device, feeding port and discharging port. All components work together to achieve vertical lifting and conveying of materials.

Product Advantages

1. Good sealing, less pollution: Fully enclosed design effectively prevents dust overflow and reduces environmental pollution.

2. Easy operation and maintenance, fewer wearing parts: Reasonable structural design, simple daily operation, low maintenance frequency and low maintenance cost.

3. Energy saving and low maintenance, low operating cost: High-efficiency transmission system, low energy consumption, fewer repairs, low comprehensive operating cost.

4. Excellent design principle ensures reliable operation of the whole machine: Advanced design concept ensures stable and reliable equipment operation.

5. High precision, machine housing is folded and ribbed, then welded with good rigidity and beautiful appearance: Advanced manufacturing process, good machine rigidity and attractive appearance.

6. Compared with other elevators with the same lifting capacity, bucket elevator has smaller mechanical dimensions: Compact design, small floor space, suitable for applications with limited space.

Technical Parameters - NE Series Bucket Elevator

Model	Lifting Capacity(m³/h)	Bucket Volume(L)	Bucket Pitch(mm)	Bucket Speed(m/min)	Max Material Size(mm)	Power(kW)
NE15	15	2.5	203	29.8	40	2.2
NE30	30	7.8	304	30.1	55	5.5
NE50	50	14.7	304	30.1	64	7.5
NE100	100	35	400	31.8	80	18.5
NE150	150	52.2	400	31.8	90	30
NE200	200	84.6	500	30	100	37
NE300	300	127.5	500	30	120	55
NE400	400	182.5	600	30	150	75
NE500	500	260.9	600	30	170	90
NE600	600	300	600	30	190	110
NE800	800	501.8	800	30	220	150
