Ultrafine Grinding Mill

Ultrafine Grinding Mill

Model: OGM Series | Category: Grinding Equipment

Ultrafine grinding mill is mainly suitable for ultrafine grinding processing of medium and low hardness materials with Mohs hardness ≤6, non-flammable and non-explosive brittle materials, such as calcite, chalk, limestone and other more than 100 kinds of materials.

Get a Quote Now
Product Introduction
Working Principle
Product Advantages
Technical Specifications
Application Cases

Product Introduction

Ultrafine grinding mill (also called calcite micro powder mill, limestone micro powder mill, calcium carbonate micro powder mill, talc micro powder mill, barite micro powder mill, gypsum micro powder mill, marble micro powder mill, feldspar micro powder mill, fluorite micro powder mill) is mainly suitable for ultrafine grinding processing of medium and low hardness, Mohs hardness ≤6, non-flammable and non-explosive brittle materials, such as calcite, chalk, limestone, carbon black, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, rectorite, diatomite, celestite, barite, graphite, fluorite, phosphate ore, potassium ore, pumice and other more than 100 kinds of materials. Fine powder finished product size can be adjusted between 325-3000 mesh, with production capacity of 0.4-4.5 tons per hour.

Application areas: Calcium carbonate crushing and processing, gypsum powder processing, power plant desulfurization, non-metallic mineral powder making, coal powder preparation, etc.

Working Principle

Ultrafine grinding mill production line typically includes: hammer crusher, bucket elevator, storage bin, vibrating feeder, micro powder mill host, frequency conversion classifier, double cyclone powder collector, pulse dust removal system, high pressure fan, air compressor, electrical control system, etc. Large pieces of material are crushed by hammer crusher to feed size suitable for ultrafine grinding mill (about 1cm), then the grinding mill analyzer speed is adjusted to achieve the fineness required for production. After manual bagging, or automatic micro powder packaging machine can be configured as needed, with different models of grinding mill available.

Product Advantages

  1. High efficiency, energy saving: With the same finished product fineness and motor power, the output is more than double that of airflow mill,, ball mill.
  2. Long service life of wearing parts: Grinding rollers and rings are made of special materials, greatly improving utilization. Generally can last more than one year. When processing calcium carbonate and calcite, service life can reach 2-5 years.
  3. High safety and reliability: Because there are no rolling bearings and screws inside the grinding cavity, there are no problems with bearing and seal parts being easily damaged, and no screws loosening and damaging the machine.
  4. Environmental protection and clean: Using pulse dust collector to capture dust, using muffler to reduce noise, with environmental protection and clean characteristics.

Technical Specifications

Model Avg. Diameter(mm) Feed Size(mm) Product Size(mesh) Capacity(kg/h) Main Motor(KW) Blower(KW) Analyzer(KW) Dimensions(L*W*H,m)
OCM800 Φ800 ≤20 325-2500 500-4500 75 45 18.5 13.9x4x6.2
OCM900 Φ900 ≤20 325-2500 800-6500 45×2 55 18.5 14.7*4.8*7.2
OCM1000 Φ1000 ≤20 325-2500 1000-8500 132 75 30 18*4.6*8.6
OCM1250 Φ1250 ≤20 325-2500 2500-14000 185 55×2 15x4 14*9*10.25
OCM1680 Φ1680 ≤20 325-2500 5000-25000 315 90×2 18.5×5 26.3*7.5*11.9

Product images, models, data, functions, performance, specifications and parameters on this website are for reference only. The above content may be improved. For specific information, please refer to the actual product and product manual. Unless otherwise specified, the interpretation of data on this website is retained by OrePeak Technology.

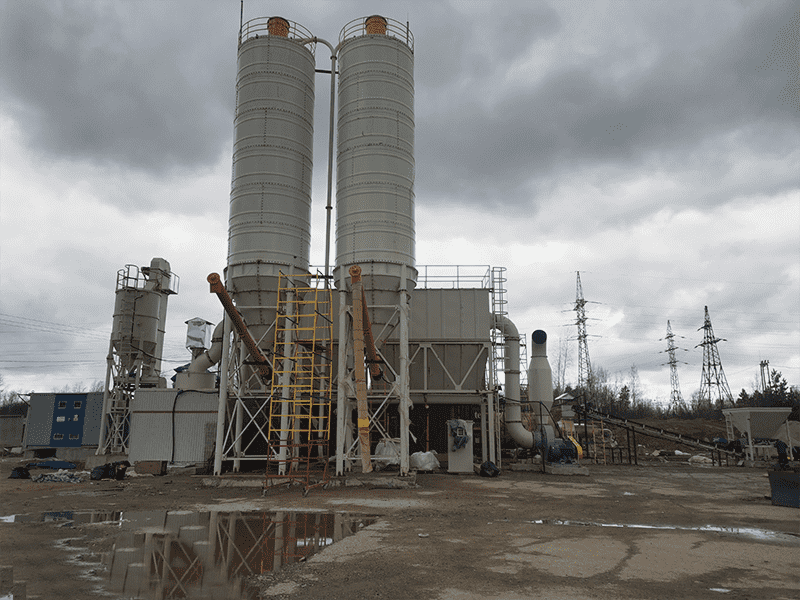

Case 1

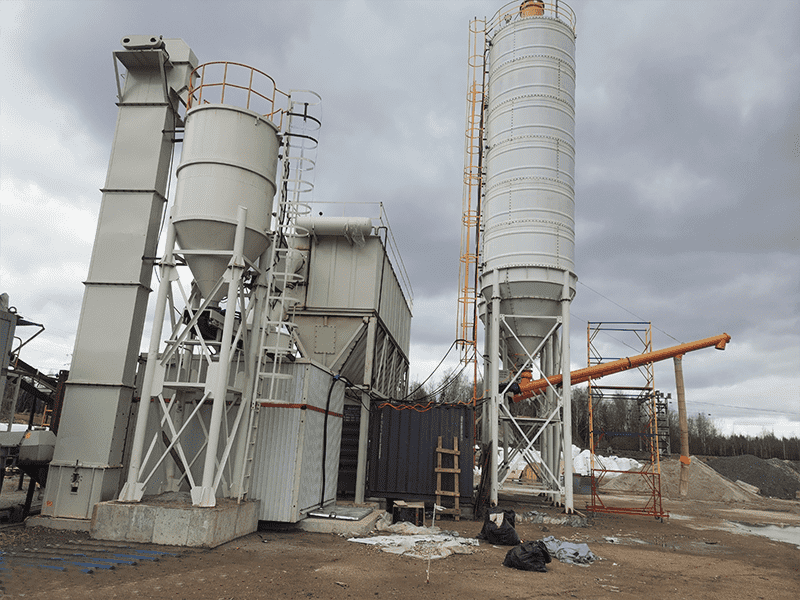

Case 2

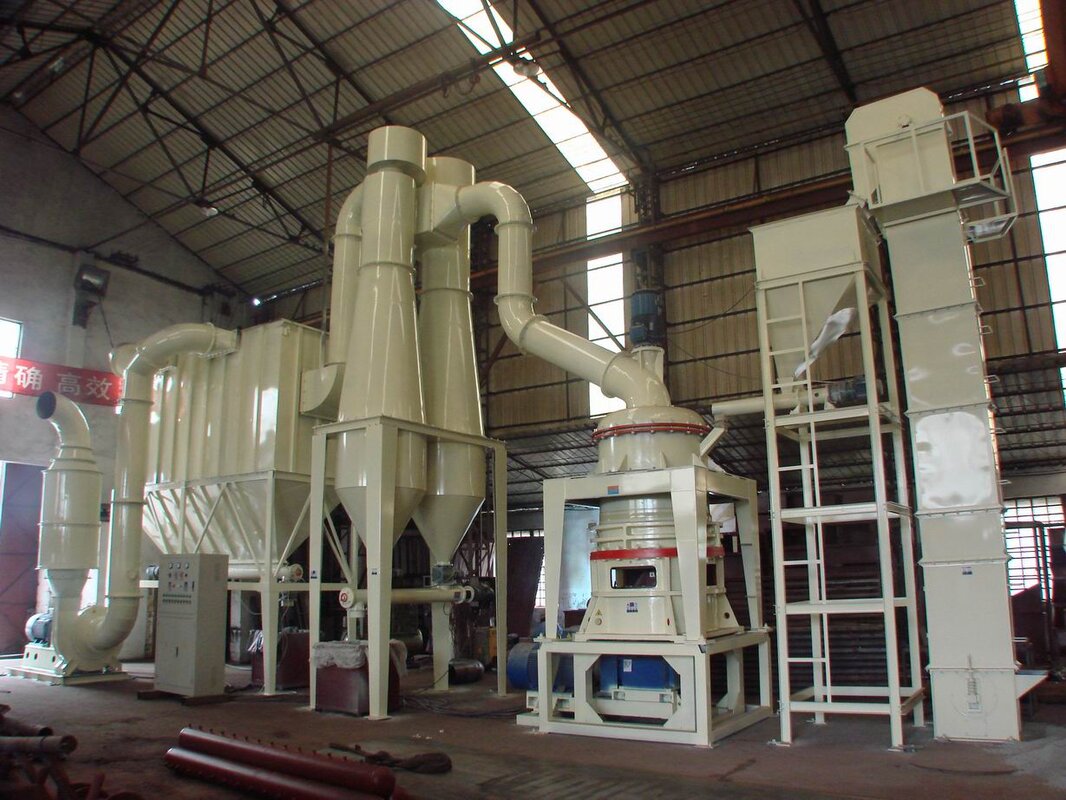

Case 3
