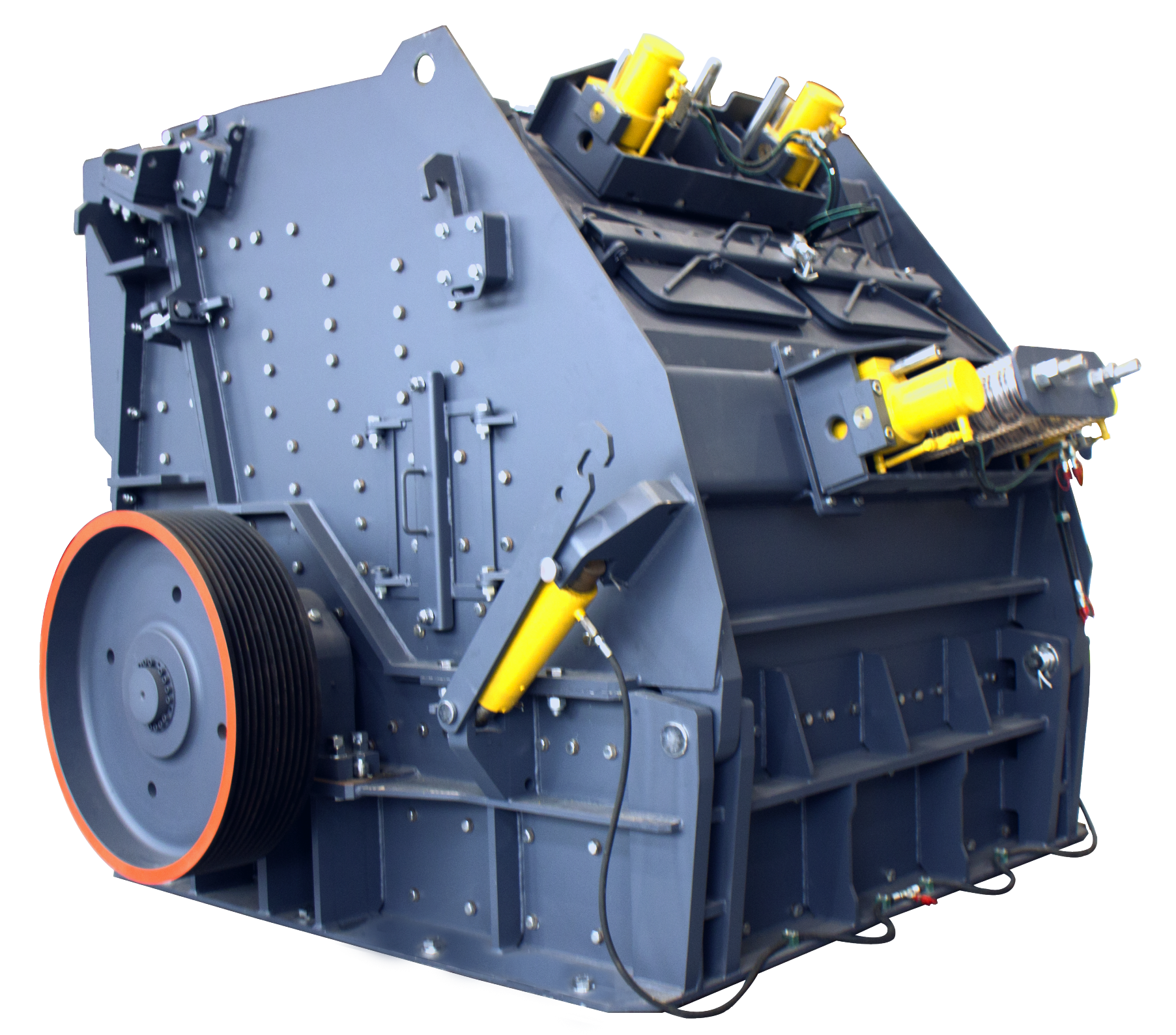

OI5X Impact Crusher

Working Principle

The OI5X Impact Crusher is a crushing machine that uses impact energy to crush materials. When materials enter the plate hammer action zone, they are crushed by the high-speed impact of the plate hammer and thrown to the impact device installed above the rotor for secondary crushing, and then bounced back to the plate hammer action zone for re-crushing. This process repeats until materials are crushed to the required size and discharged from the bottom of the machine. Adjusting the gap between the impact frame and the rotor frame can change the material particle size and shape. The machine uses a spring safety device behind the impact plate. When non-crushable objects enter the crushing cavity, the front and rear impact frame retreat, allowing the non-crushable objects to be discharged from the machine.

Product Advantages

1. Large rotational inertia high-precision heavy-duty rotor, higher crushing efficiency: The rotor uses a large rotational inertia high-precision heavy-duty rotor equipped with high-quality bearings to ensure rotor precision and high load-bearing capacity. Therefore, materials can be fully accelerated and crushed, with larger crushing ratio.
2. Involution crushing cavity design, ensuring better particle shape: The crushing cavity adopts an efficient large crushing cavity design verified by simulation software and practice. After multiple impacts and crushing in this cavity type, particle shape becomes more cubic, better meeting the production requirements of high-quality aggregates.
3. Multi-function full hydraulic operating system, improving equipment operation rate: The multi-function full hydraulic operating system offers high adjustment precision and fast speed, facilitating plate hammer and impact blocks replacement and maintenance, discharge particle size adjustment, thereby effectively reducing labor and time operation costs.
